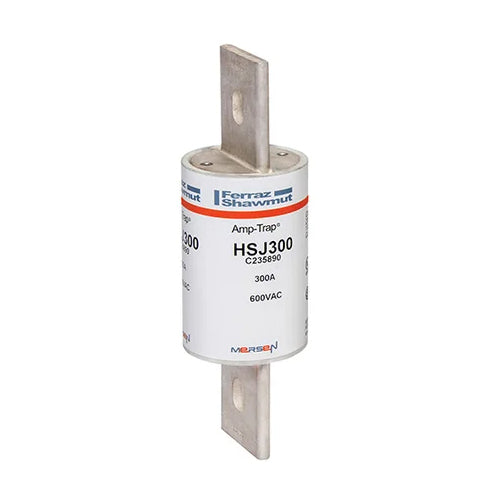

Mersen HSJ300, Class J HSJ High-Speed Fuse, 600VAC/500VDC, 300A, Blade Type
Regular price
$588.41
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The High Speed Class J (HSJ) combines the low I2t of a semiconductor fuse and the branch-circuit performance of a Class J UL Listed fuse into a single design. The HSJ can provide both branch circuit protection per NEC requirements, as well as very low I2t for protection of power semiconductors such as Diodes, SCRs, GTOs and SSRs.
| Rated Voltage | 600VAC/500VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 300A |
| ROHS Compliant | Yes |
| Fuse Class | Class J |
| Speed/Characteristic | High Speed |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Brass |
| Connection/Terminal Type | Blade |
| Product Diameter | 2.12'' |
| Product Length | 7.13'' |
| Body/Insulating Material | GMG |
| Product Weight | 1.79 lb |
