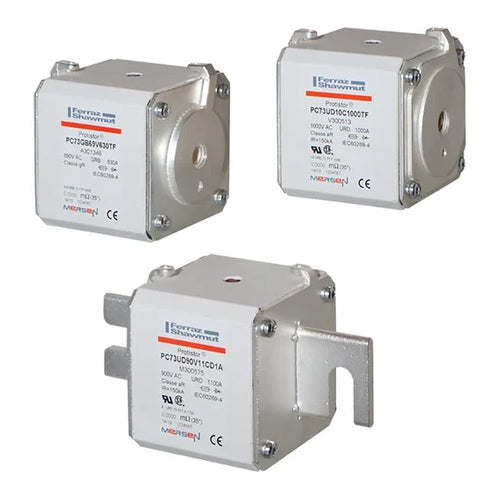

Mersen K301056, Square Body High-Speed Fuse, Fast Acting, Size 73 aR, 1000/1100VAC, 1000A, With Striker Flush ends UNC threads
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
These 1250/1300V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
| Part No | A110UD73TTI1000 |
| Rated Voltage | UL 1100VAC IEC 1000VAC |
| Ampere Rating | 1000A |
| Speed/Characteristic | aR |
| Fuse Size | 73 |
| Mounting | Bolted |
| Clearing I2t At Rated Voltage | 2130 kA²s |
| Melting I2t | 370 kA²s |
| AC Max I.R./Breaking Capacity: I1 | 167 kA |
| Indication System Type | Striker |
| Connection/Terminal Material | Silver-Plated Brass |
| Connection/Terminal Type | Flush ends |
| Dimensions | 2.91'' (L) x 2.87'' (W) x 3.09'' (H) |
| Body/Insulating Material | Ceramic |
| Product Weight | 2.756 lb |
| Power Dissipation at Rated Current Value | 152 W |
