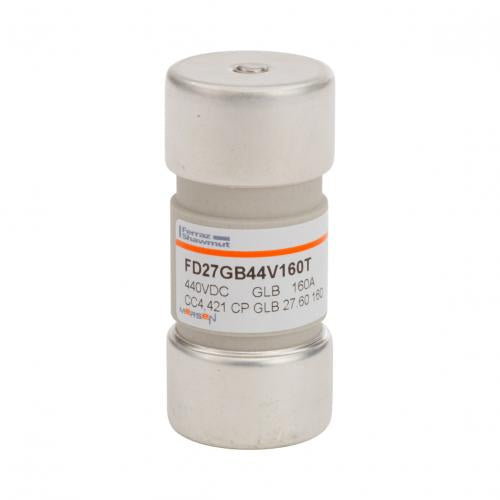

Mersen M075704, High-Speed Cylindrical Semiconductor Protection Fuse, Size 27x60 gLB, 440VDC, 160A, With Striker
Regular price
$906.02
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life.
| Catalogue No | FD27GB44V160T |
| Rated Voltage | 440VDC |
| Ampere Rating | 160A |
| Speed/Characteristic | gLB |
| Fuse Size | 27x60 |
| Mounting | Clip |
| Max. Rated Breaking Capacity DC | 100 kA |
| Indication System | Yes |
| Indication System Type | Striker |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 1.06'' |
| Product Length | 2.37'' |
| Body/Insulating Material | Ceramic |
| Product Weight | 0.176 lb |
| Power Dissipation at Rated Current Value | 24.2 W |
