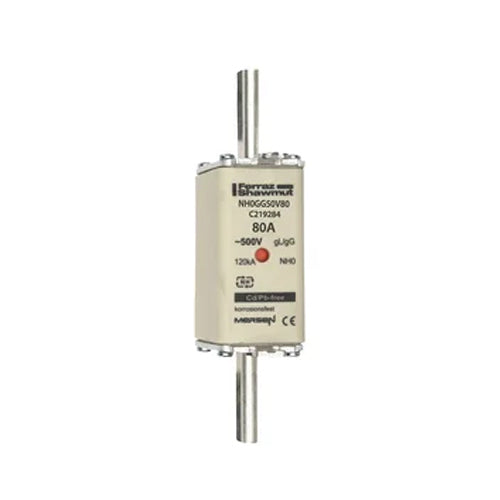

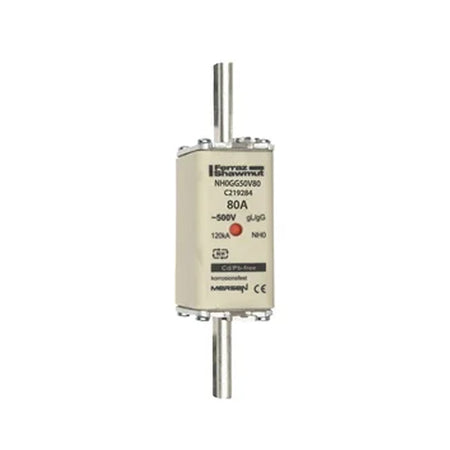

Mersen NH0GG50V80, DIN NH Standard fuse-link gG, Size NH0, Size NH0, 500VAC/250VDC, 80A, live tags Double indicator
Regular price
$122.97
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The NH system is classified among plug-in fuse systems and is composed of: * fuse-base (possibly including terminal covers and phase barriers) * fuse-link with blade contact * fuse-link replacement device (LV HRC fuse puller) Since the design of this system cannot guarantee non-interchangeability of rated current, it must be handled by a qualified professional.
| Item number | C219284 |
| Rated voltage | 500VAC/250VDC |
| Ampere Rating | 80A |
| Speed/Characteristic | gG |
| Fuse Size | NH0 |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 120 kA |
| Design Details | live tags |
| Indication System | Yes |
| Indication System Type | Double indicator |
| Connection/Terminal Material | Brass |
| Connection/Terminal Type | Plain Blades |
| Dimensions | 4.92'' (L) x 1.18'' (W) x 2.4'' (H) |
| Body/Insulating Material | Ceramic |
| Product Weight | 0.595 lb |
| Power Dissipation at Rated Current Value | 8 W |
