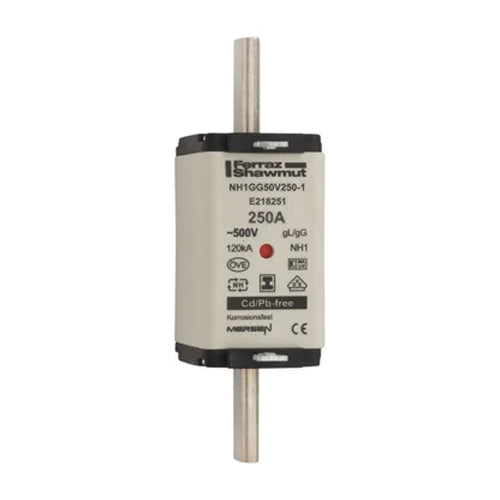

Mersen NH1GG50V250-1, DIN NH Standard fuse-link gG, Size NH1, 500VAC/250VDC, 250A, isolated tags Double indicator
Regular price
$183.37
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The NH system is classified among plug-in fuse systems and is composed of: * fuse-base (possibly including terminal covers and phase barriers) * fuse-link with blade contact * fuse-link replacement device (LV HRC fuse puller) Since the design of this system cannot guarantee non-interchangeability of rated current it must be handled by a qualified professional.
| Item number | E218251 |
| Rated voltage | 500VAC/250VDC |
| Ampere Rating | 250A |
| Speed/Characteristic | gG |
| Fuse Size | NH1 |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 120 kA |
| Design Details | isolated tags |
| Indication System | Yes |
| Indication System Type | Double indicator |
| Connection/Terminal Material | Brass |
| Connection/Terminal Type | Plain Blades |
| Dimensions | 5.31'' (L) x 1.57'' (W) x 2.52'' (H) |
| Body/Insulating Material | Ceramic |
| Product Weight | 0.926 lb |
| Power Dissipation at Rated Current Value | 20 W |
