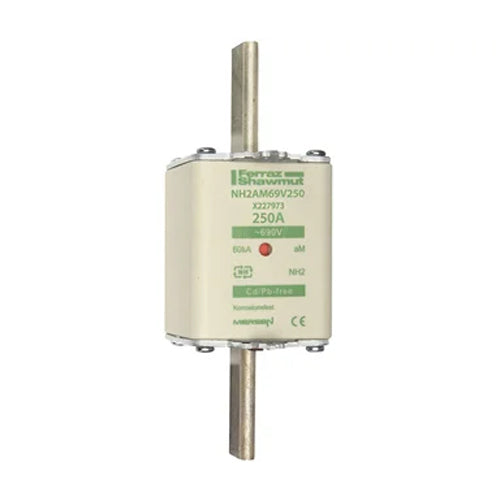

Mersen NH2AM69V250, DIN NH Standard fuse-link aM, Size NH2, 690VAC, 250A, live tags Double indicator
Regular price
$224.36
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The NH system is classified among plug-in fuse systems and is composed of: * fuse-base (possibly including terminal covers and phase barriers) * fuse-link with blade contact * fuse-link replacement device (LV HRC fuse puller) Since the design of this system cannot guarantee non-interchangeability of rated current, it must be handled by a qualified professional.
| Item number | X227973 |
| Rated voltage | 690VAC |
| Ampere Rating | 250A |
| Speed/Characteristic | aM |
| Fuse Size | NH2 |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 80 kA |
| Design Details | live tags |
| Indication System | Yes |
| Indication System Type | Double indicator |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Plain Blades |
| Dimensions | 5.91'' (L) x 2.05'' (W) x 2.91'' (H) |
| Body/Insulating Material | Ceramic |
| Product Weight | 1.411 lb |
| Power Dissipation at Rated Current Value | 16.8 W |
