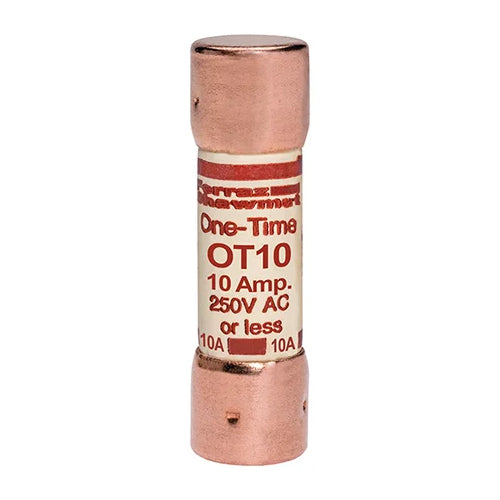

Mersen OT10, OT 10A Class K5 Fuse, Fast-Acting, 250VAC/DC, Ferrule Type
Regular price
$10.58
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
One-Time OT and OTN general purpose fuses provide low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OT and OTN fuses will safely interrupt available short-circuit currents up to 50,000 amperes in all ratings. OT and OTN fuses are not rejection fuses and care should be taken to ensure that replacement fuses do not have lower interrupting ratings than original fuses. OTN(15-60) satisfy the Canadian electrical code requirement for Type P low melting-point, non-time-delay fuses.
| Rated Voltage | 250VAC/DC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 10A |
| Fuse Class | Class K5 |
| Speed/Characteristic | Fast-Acting |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Connection/Terminal Material | Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 0.56'' |
| Product Length | 2'' |
| Body/Insulating Material | Paper |
| Product Weight | 0.029 lb |
