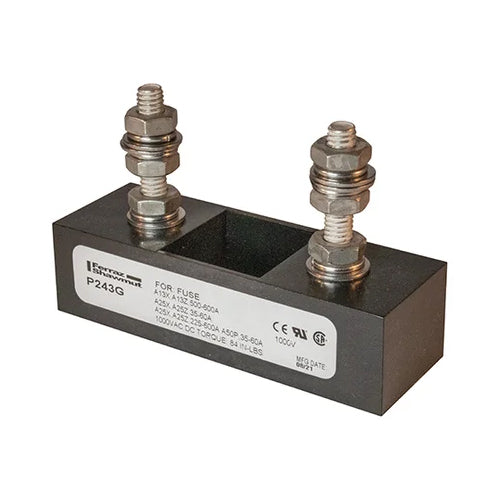

Mersen P243G, P-Block For Semiconductor Fuse, 1-Pole, 600A, 1000VAC/DC, Stud Center to Center: 2.44''
Regular price
$282.03
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen P-Block series for Form 101 fuses are glass-filled polycarbonate or laminated phenolic insulator blocks with studs to accommodate bolt-in fuses. All studs, clips and mounting hardware are tin or zinc-plated
| Rated voltage | 1000 VAC/DC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 600 A |
| Short Circuit Current Rating (SCCR) | 10 kA |
| Fuse Type/Class | Semiconductor |
| Number of Poles | 1-Pole |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Stud |
| Fuse Installation Method | Bolt-in |
| Torque Rating | 84 lb-in |
| Max Fuse Rating | 600 A |
| Installation Mounting | Direct Screw Mount |
| Dimensions | 4.4'' (L) x 2.79'' (W) x 2.79'' (H) |
| Body/Insulating Material | Phenolic |
| Safety Certifications | ROHS, CSA |
| Product Weight | 0.36 lb |
