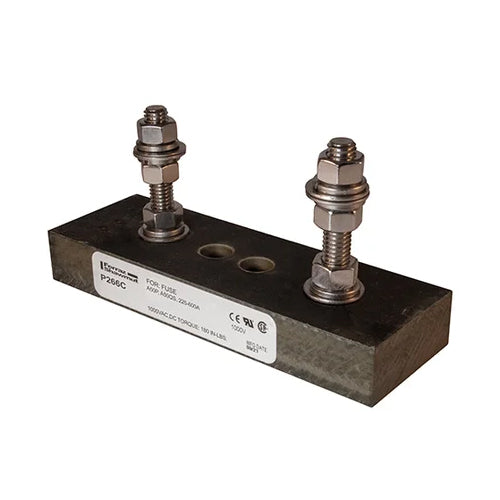

Mersen P266C, P-Block For Semiconductor Fuse, 1-Pole, 600A, 1000VAC/DC, Stud Center to Center: 3.28''
Regular price
$432.67
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen P-Block series for Form 101 fuses are glass-filled polycarbonate or laminated phenolic insulator blocks with studs to accommodate bolt-in fuses. All studs, clips and mounting hardware are tin or zinc-plated
| Rated voltage | 1000 VAC/DC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 600A |
| Short Circuit Current Rating (SCCR) | 10 kA |
| Fuse Type/Class | Semiconductor |
| Number of Poles | 1-Pole |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Stud |
| Fuse Installation Method | Bolt-in |
| Torque Rating | 144 lb-in |
| Installation Mounting | Direct Screw Mount |
| Dimensions | 6'' (L) x 3'' (W) x 3'' (H) |
| Body/Insulating Material | Phenolic |
| Safety Certifications | ROHS, CSA |
| Product Weight | 1.5 lb |
