Home » Mersen P292, P-Block For Semiconductor Fuse, 1-Pole, 30A, 1200VAC/DC, Screw
Mersen

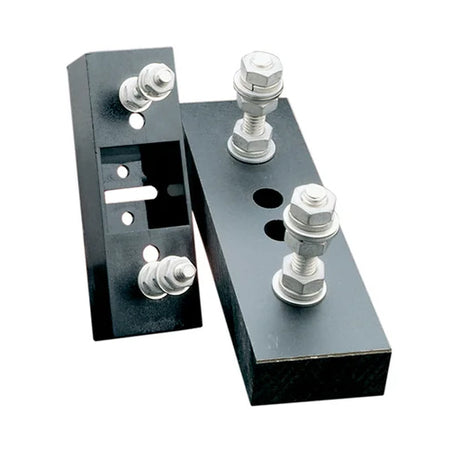

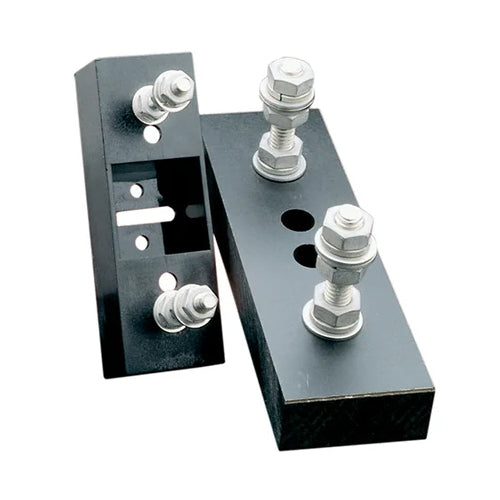

Mersen P292, P-Block For Semiconductor Fuse, 1-Pole, 30A, 1200VAC/DC, Screw

In stock
SKU: P292
$177.84
Rated voltage
Ampere rating
Pole

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Mersen P-Block series for Form 101 fuses are glass-filled polycarbonate or laminated phenolic insulator blocks with studs to accommodate bolt-in fuses. All studs, clips and mounting hardware are tin or zinc-plated

 Rated voltage 1200 VAC/DC
Frequency (Hz) 50/60 Hz
Ampere Rating 30A
Short Circuit Current Rating (SCCR) 10 kA
Fuse Type/Class Semiconductor
Number of Poles 1-Pole
Connection/Terminal Material Tin-Plated Copper
Connection/Terminal Type Clip
Fuse Installation Method Bolt-in
Installation Mounting Direct Screw Mount
Dimensions 6.38'' (L) x 2.01'' (W) x 2.01'' (H)
Body/Insulating Material Phenolic
Safety Certifications ROHS, CSA
Product Weight 0.75 lb
