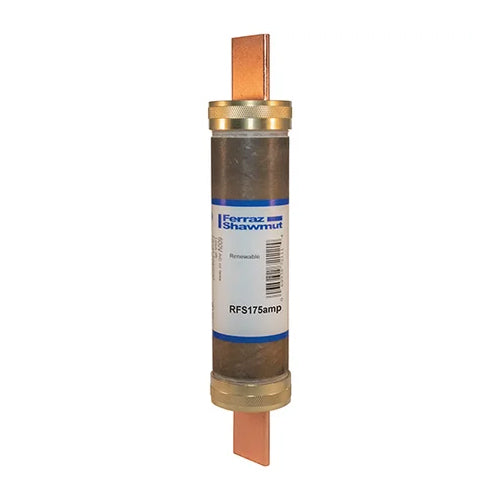

Mersen RFS175, RFS Class H Fast-Acting Fuse, 600VAC, 175A, Blade Type
Regular price
$626.77
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
RFS general purpose Class H renewable fuses are suitable for application where available short-circuit currents do not exceed 10,000 amperes. For replacement fuse links select RLS series die-cut zinc replacement links from 3 to 600 amperes in 30 ratings.
| Rated Voltage | 600VAC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 175A |
| Fuse Class | Class H |
| Speed/Characteristic | Fast-Acting |
| Mounting | Clip |
| Connection/Terminal Material | Brass |
| Connection/Terminal Type | Blade |
| Product Diameter | 1.81'' |
| Product Length | 9.63'' |
| Body/Insulating Material | FWGE |
| Product Weight | 1.42 lb |
