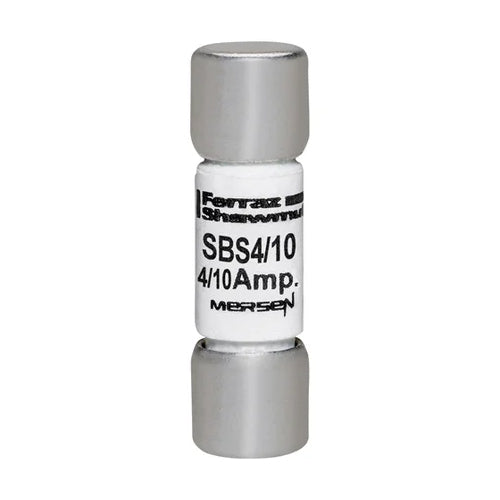

Mersen SBS4/10, SBS Midget Fast-Acting Ferrule Fuse, 600VAC, 0.4A
Regular price
$17.50
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
SBS midget fast-acting fuses were developed in response to the industry's demand for smaller equipment and components. They are the only fuses in their size with a full 600VAC rating for all ampere ratings by UL Standard 248-14 and CSA No. 59.2, and are the only fuses of this size with an interrupting rating of 100kA RMS, compared to 10kA on other brands.
| Rated Voltage | 600VAC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 0.4A |
| Fuse Class | Midget |
| Speed/Characteristic | Fast-Acting |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 100 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 0.41'' |
| Product Length | 1.38'' |
| Body/Insulating Material | GMG |
| Product Weight | 0.016 lb |
