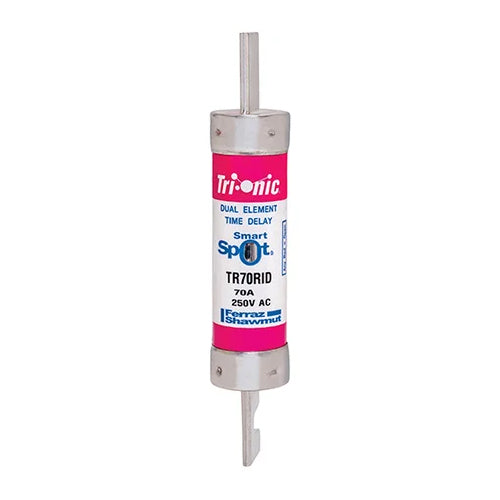

Mersen TR70RID, TR-R 70A Class RK5 Time-Delay Fuse, 250VAC/DC, with SmartSpot Blown Fuse Indicator
Regular price
$62.26
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Tri-Onic TR-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TR-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.
| Rated Voltage | 250VAC/DC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 70A |
| Fuse Class | Class RK5 |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Indication System | Yes |
| Indication System Type | SmartSpot® |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 1.06'' |
| Product Length | 5.88'' |
| Body/Insulating Material | PolyTube |
| Product Weight | 0.303 lb |
