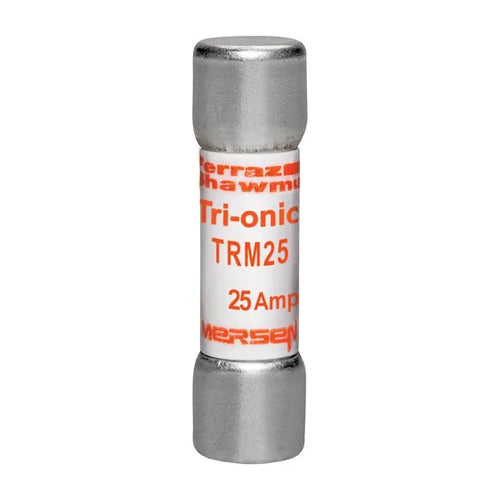

Mersen TRM25, TRM Midget Time-Delay Ferrule Fuse, 250VAC, 25A
Regular price
$6.63
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Tri-Onic® TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).
| Rated Voltage | 250VAC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 25A |
| Fuse Class | Midget |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 10 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 0.41'' |
| Product Length | 1.5'' |
| Body/Insulating Material | GMG |
| Product Weight | 0.013 lb |
