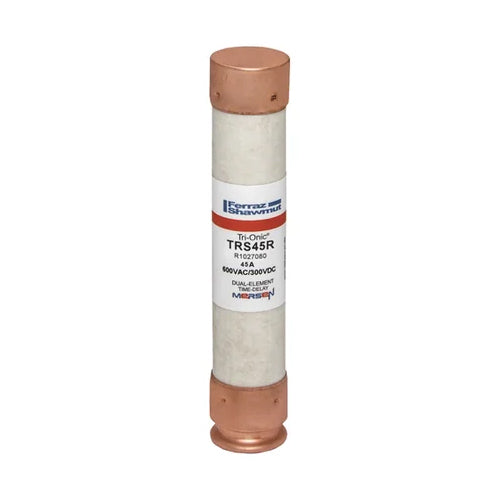

Mersen TRS45R, TRS-R Class RK5 Time-Delay Ferrule Fuse, 600VAC/300VDC, 45A
Regular price
$18.33
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Tri-Onic TRS-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.
| Rated Voltage | 600VAC/300VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 45A |
| Fuse Class | Class RK5 |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 1.06'' |
| Product Length | 5.5'' |
| Body/Insulating Material | PolyTube |
| Product Weight | 0.319 lb |
