Mersen US142M2I, UltraSafe US14 Modular fuse-holder for 14x51 fuse links, 750VAC/DC, 2-Pole, 50A, with Indicator and 2 Connected Microswitches
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

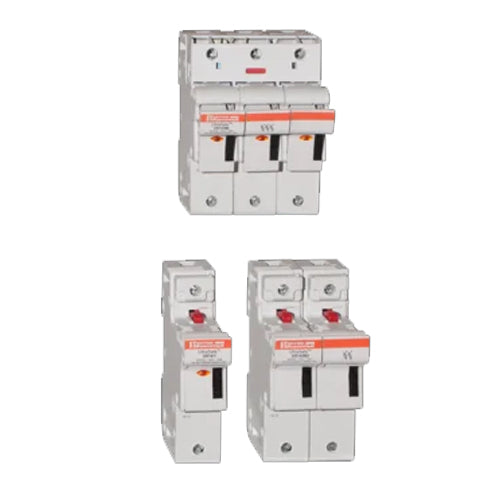

The innovative and comprehensive UltraSafe™ range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In this size, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication. UltraSafe™ range is made of tough and durable thermoplastic or thermoset material.
| Item number | M331142 |
| Rated voltage AC UL | 800 V |
| Rated voltage DC UL | 1000 V |
| Frequency (Hz) | 50 ... 60 Hz |
| Rated voltage AC IEC | 750 V |
| Rated voltage DC IEC | 750 V |
| Ampere Rating | 50 A |
| Short Circuit Current Rating (SCCR) | 100 kA |
| Fuse Size | 14x51 |
| Indication System | Yes |
| Indication System Type | Visual Indicator Microswitch |
| Number of Poles | 2-Pole |
| Wiring range | #2 - #14 |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Clip |
| Fuse Installation Method | Clip-in |
| Torque Rating | 30.978 lb-in |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Insulation Voltage | 690 V |
| Installation Mounting | DIN rail acc. EN 60715 |
| Dimensions | 3.01'' (L) x 2.09'' (W) x 4.36'' (H) |
| Body/Insulating Material | Polyamide |
| Product Weight | 0.683 lb |
| Safety Certifications | ROHS, CE, CSA |
