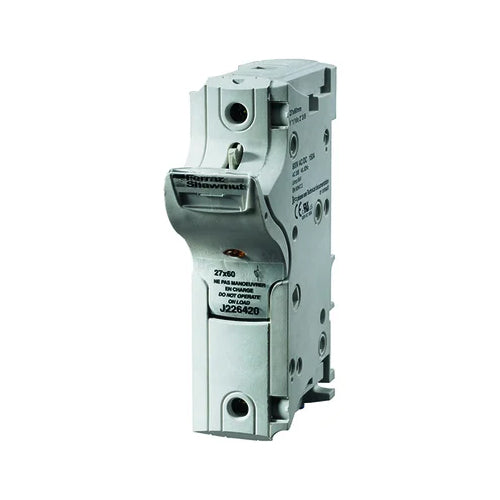

Mersen US272M2IRING, Ultrasafe US27 Modular fuse-holders for 27x60 fuse-links, 800VAC/DC, 2-Pole, 140A, With Auxiliary Microswitch, Indicator And Ring Lug Connection
Regular price
$790.66
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The innovative and comprehensive Modulostar® range of Mersen fuse-holders. Modular fuse-holders are finger-safe as per IEC standards to an IP20 grade of protection. Including fuse changing, with the flick of a finger. Modular fuse-holders are available in 1, 2 or 3 poles, with or without visual blown fuse indicators, in IEC + UL version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. The range offers the possibility to use microswitches (supplied with the holders or ordered separatly) to allow remote indication. Modulostar® range is made of tough and durable thermoplastic or thermoset material.
| Item number | B227609 |
| Rated voltage | 800VAC/DC |
| Ampere Rating | 140 A |
| Fuse Size | 27x60 |
| Number of Poles | 2-Pole |
| Indication System | Yes |
| Indication System Type | Visual Indicator Microswitch |
| Torque Rating | 30.978 lb-in |
| Rated Impulse Withstand Voltage | 8 kV |
| Max Power dissipation of Fuse Links Pn | 11 W |
| Installation Mounting | DIN rail acc. EN 60715 |
| Dimensions | 3.68'' (L) x 3.15'' (W) x 11.89'' (H) |
| Product Weight | 0.668 lb |
| Safety Certifications | ROHS, CE, CSA |
