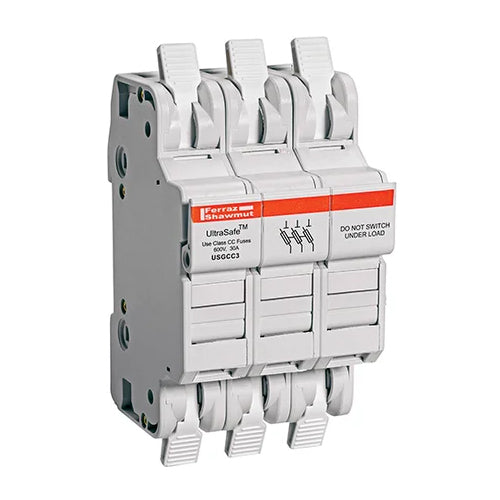

Mersen USGCC3, UltraSafe USGCC Class CC Fuse Holder, 600VAC/DC, 30A, 3-Pole, without Indicator
Regular price
$145.35
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen’s USGCC series fuse holders deliver the ultimate ease-of-use, time (labor) saving and reliable solution available in the marketplace. Mersen is the first manufacturer to offer screw-less, spring pressure, wire termination technology into a power fuse holder, delivering the best of both technologies to its customers. Now you can experience the combined benefits of safety, ease-of-use, labor savings and reliability of UltraSafe fuse holders and spring pressure technology.
| Rated voltage | 600VAC/DC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 30A |
| Fuse Class | Class CC |
| Short Circuit Current Rating (SCCR) | 200 kA |
| Number of Poles | 3-Pole |
| Wiring range | Cu #6-14 |
| Fuse Installation Method | Clip-in |
| Torque Rating | 15 lb-in |
| Installation Mounting | DIN Rail |
| Dimensions | 4.13'' (L) x 2.04'' (W) x 2.17'' (H) |
| Body/Insulating Material | Glass Filled Polycarbonate |
| Product Weight | 0.43 lb |
| Safety Certifications | ROHS, CE, CSA,UL |
