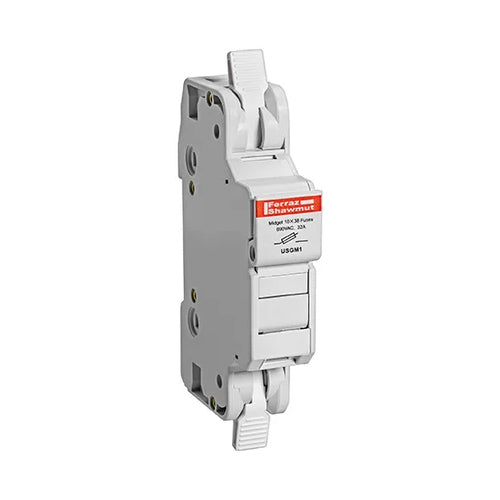

Mersen USGM1, UltraSafe USGM Midget Fuse Holder, 750VAC/1000VDC, 30A, 1-Pole, without Indicator
Regular price
$42.29
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen’s USGM series fuse holders deliver the ultimate ease-of-use, time (labor) saving and reliable solution available in the marketplace. Mersen is the first manufacturer to offer screw-less, spring pressure, wire termination technology into a power fuse holder, delivering the best of both technologies to its customers. Now you can experience the combined benefits of safety, ease-of-use, labor savings and reliability of UltraSafe fuse holders and spring pressure technology.
| Rated voltage | 750VAC/1000VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 30A |
| Fuse Class | Midget |
| Short Circuit Current Rating (SCCR) | 200 kA |
| Number of Poles | 1-Pole |
| Wiring range | #6 to #14 Solid or Stranded |
| Fuse Installation Method | Clip-in |
| Installation Mounting | DIN Rail |
| Dimensions | 4.13'' (L) x 0.68'' (W) x 2.17'' (H) |
| Body/Insulating Material | Polyamide |
| Product Weight | 0.14 lb |
| Safety Certifications | ROHS, CE, CSA |
