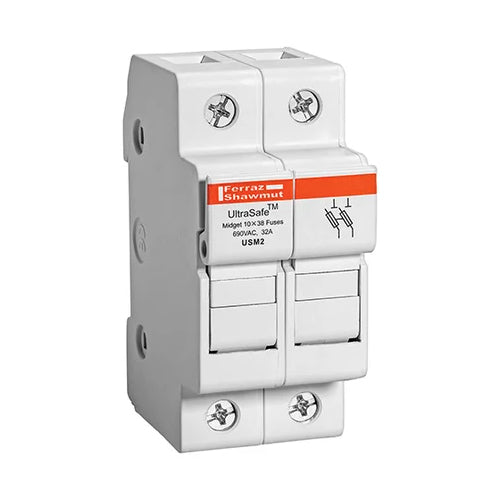

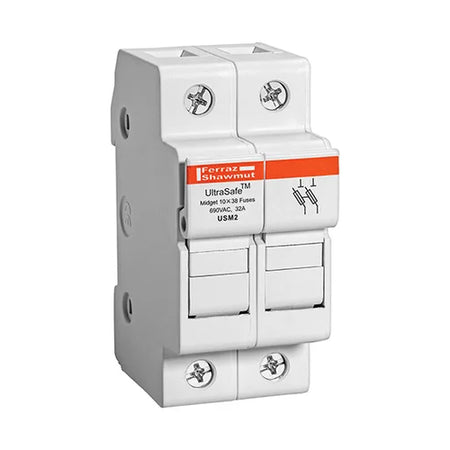

Mersen USM2, UltraSafe USM Midget Fuse Holder, 800VAC/1000VDC, 30A, 2-Pole, without Indicator
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen USM Series UltraSafe Modular Fuse holders introduce a new level of safety for Midget 1-1/2" x 13/32" AC and DC-rated fuses up to 30 amperes. UltraSafe holders qualify as “Finger-safe” under IEC and DIN standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). UltraSafe holders are available in 1, 2, 3 or 4 poles, with or without visual blown-fuse indicators in each pole. Multipole units can also be field assembled by ordering pin-tie handles. UltraSafe holders save up to 15% mounting space and any combination can be snapped onto 35mm DIN-rail for extra savings in panel building time. UltraSafe body material is tough and durable polyamide, with exceptional insulating properties.
| Rated voltage | 800VAC/1000VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 30A |
| Fuse Class | Midget |
| Short Circuit Current Rating (SCCR) | 100 kA |
| Number of Poles | 2-Pole |
| Wiring range | #6 to #14 Solid or Stranded |
| Connector type | Pressure plate |
| Fuse Installation Method | Clip-in |
| Torque Rating | 15 lb-in |
| Installation Mounting | DIN Rail |
| Dimensions | 3.07'' (L) x 1.38'' (W) x 2.32'' (H) |
| Body/Insulating Material | Polyamide |
| Product Weight | 0.28 lb |
| Safety Certifications | ROHS, CE, CSA |
