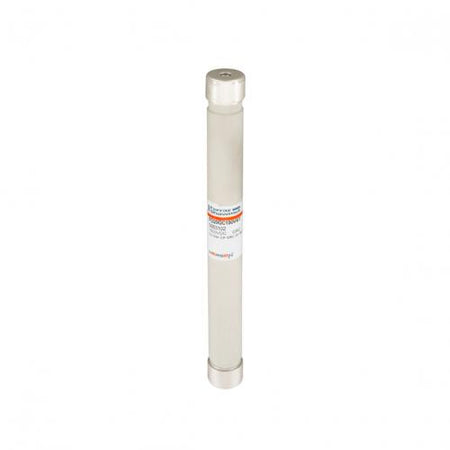

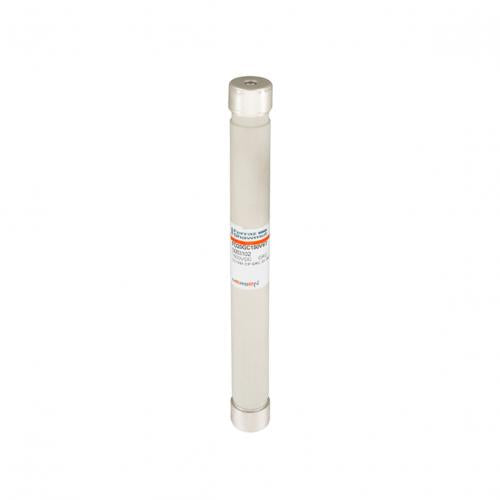

Mersen V083738, High-Speed Cylindrical DC Ferrule Fuse, Size 20x190 gR (gRC), 1500VDC, 8A, With Striker
Regular price
$718.84
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life.
| Catalogue No | FD20GC150V8T |
| Rated Voltage | 1500VDC |
| Ampere Rating | 8A |
| Speed/Characteristic | gR |
| Fuse Size | 20x190 |
| Mounting | Clip |
| Max. Rated Breaking Capacity DC | 60 kA |
| Design Details | gRC |
| Indication System | Yes |
| Indication System Type | Striker |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 0.81'' |
| Product Length | 7.48'' |
| Body/Insulating Material | Ceramic |
| Product Weight | 0.388 lb |
| Power Dissipation at Rated Current Value | 5.3 W |
