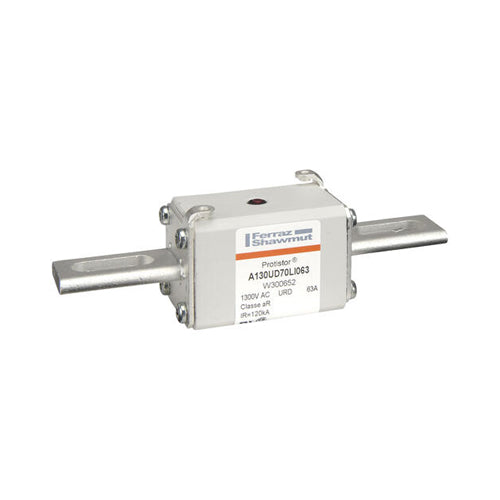

Mersen W300652, Square Body High-Speed Fuse, Fast Acting, Size 70 aR, 1250/1300VAC, 63A, With Striker Slotted Blades long
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The 1250/1300V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, GTO's and IGBT devices. Fuses are assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
| Catalogue No | A130UD70LI063 |
| Rated Voltage | UL 1300VAC IEC 1250VAC |
| Ampere Rating | 63A |
| Speed/Characteristic | aR |
| Fuse Size | 70 |
| Mounting | Bolted |
| Clearing I2t At Rated Voltage | 1680 A²s |
| Melting I2t | 210 A²s |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Indication System | Yes |
| Indication System Type | Striker |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Slotted Blades |
| Dimensions | 6'' (L) x 1.57'' (W) x 1.95'' (H) |
| Body/Insulating Material | Ceramic |
| Product Weight | 0.83 lb |
| Power Dissipation at Rated Current Value | 26 W |
