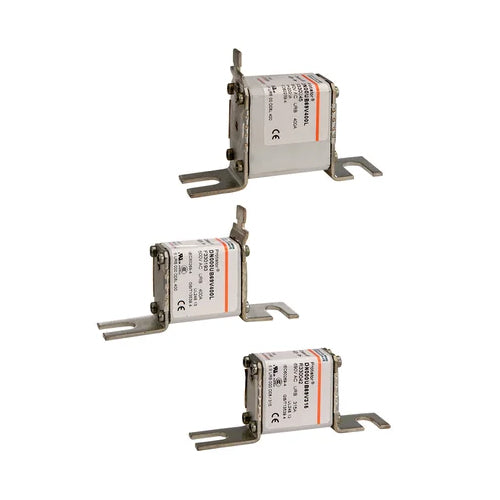

Mersen X076426, Square Body High-Speed Fuse, Fast Acting, Size NH 00 aR, 1000VAC, 160A, With Striker DIN 80 Blades
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The 1000V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for small power conversion equipment. These ultra-fast acting aR fuses have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
| Part No | DN00UC10C160L |
| Rated Voltage | IEC 1000VAC |
| Ampere Rating | 160A |
| Speed/Characteristic | aR |
| Fuse Size | NH00 |
| Mounting | Bolted |
| Clearing I2t At Rated Voltage | 17300 A²s |
| Melting I2t | 2469 A²s |
| AC Max I.R./Breaking Capacity: I1 | 120 kA |
| Indication System | Yes |
| Indication System Type | Striker |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | DIN 80 Blades |
| Dimensions | 3.94'' (L) x 1.18'' (W) x 1.52'' (H) |
| Body/Insulating Material | Ceramic |
| Product Weight | 0.551 lb |
| Power Dissipation at Rated Current Value | 39 W |
