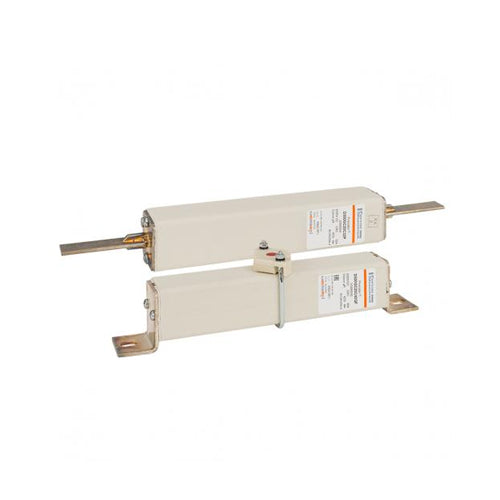

Mersen X086937, Square Body High-Speed Fuse, Size 300 gR (gRC), 2000VDC, 63A, With Striker L Brackets
Regular price
$2,586.75
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life.
| Part No | D300GC20C63QF |
| Rated Voltage | 2000VDC |
| Ampere Rating | 63A |
| Speed/Characteristic | gR |
| Fuse Size | 300 |
| Mounting | Bolted |
| Max. Rated Breaking Capacity DC | 30 kA |
| Design Details | gRC |
| Indication System | Yes |
| Indication System Type | Striker |
| Connection/Terminal Material | Silver-Plated Brass |
| Connection/Terminal Type | L Brackets |
| Dimensions | 10.55'' (L) x 2.28'' (W) x 2.48'' (H) |
| Body/Insulating Material | Ceramic |
| Product Weight | 2.535 lb |
| Power Dissipation at Rated Current Value | 42.5 W |
