Home » Mersen Z088020, High-Speed Cylindrical Fuse, Fast Acting, Size 20x127 gR (gRB), 1000VDC, 6A, With Striker, CC1051CPGRB20X127/6
Mersen

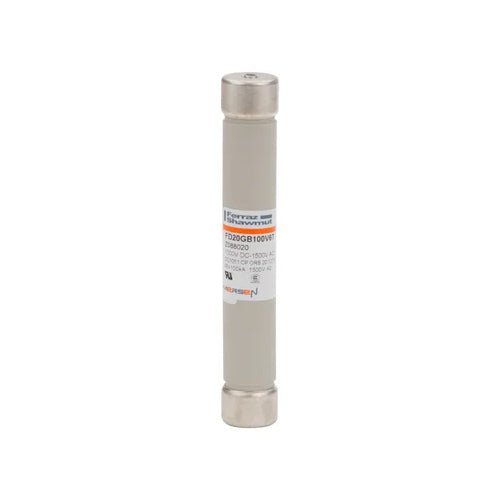

Mersen Z088020, High-Speed Cylindrical Fuse, Fast Acting, Size 20x127 gR (gRB), 1000VDC, 6A, With Striker, CC1051CPGRB20X127/6

In stock
SKU: Z088020
$438.22
Rated voltage
Ampere rating

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Specially developed for DC applications, 20x127 gR cylindrical is a fast acting, full range fuse used in the protection of auxiliaries, control circuit and other measuring and monitoring devices.

Catalogue No FD20GB100V6T
Rated Voltage 1000VDC
Ampere Rating 6A
Speed/Characteristic gR
Fuse Size 20x127
Mounting Clip
AC Max I.R./Breaking Capacity: I1 100 kA
Indication System Yes
Indication System Type Striker
Connection/Terminal Material Silver-Plated Copper
Connection/Terminal Type Ferrule
Product Diameter 0.81''
Product Length 5''
Body/Insulating Material Ceramic
Product Weight 0.214 lb
Power Dissipation at Rated Current Value 3.5 W
