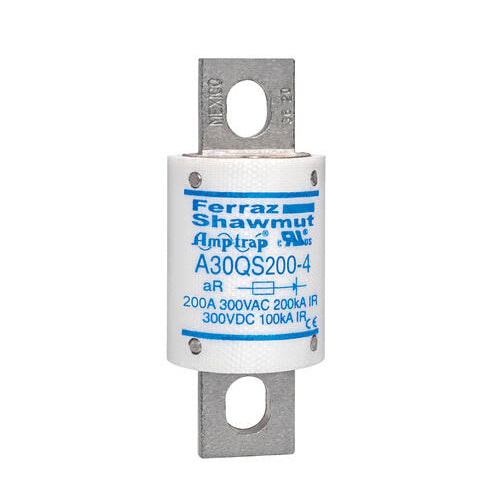

MersenA30QS200-4, Semiconductor Protection Fuse, High-Speed, Fast Acting, 300VAC/DC, 200A, Blade
Regular price
$197.51
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
A30QS Amp-Trap® high speed fuses are intended for the protection of Power Semiconductors such as diodes, phase control SCRs and other power semiconductor devices. The A30QS is recommended for new applications providing solutions for your critical protection needs at 300V and less semiconductors.
| Rated Voltage | 300VAC/DC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 200A |
| ROHS Compliant | Yes |
| Speed/Characteristic | High Speed |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 63 kA |
| Connection/Terminal Material | Tin-Plated Brass |
| Connection/Terminal Type | Blade |
| Product Diameter | 1.22'' |
| Product Length | 3.13'' |
| Body/Insulating Material | GMG |
| Product Weight | 0.3 lb |
