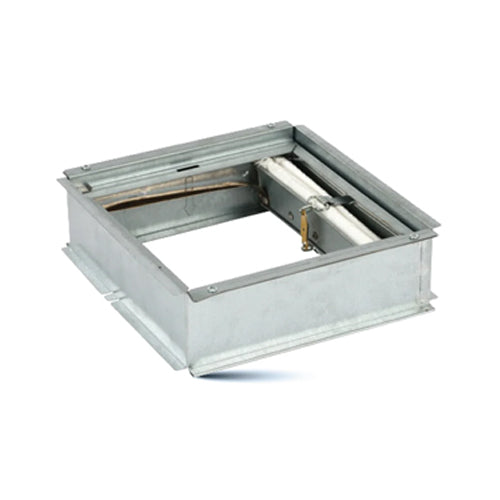

ORTECH FIRE DAMPER-ODC, Fire Damper for the Next Generation Compact Series Fans Only
Regular price
$81.39
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
HIGHLIGHTS
- Fire Resistant: Up to 3 hours
- Fire Protection: Equipped with a flexible fire blanket for enhanced safety
- Temperature Link: Includes +165°F standard thermal link
- Spring Mechanism: Spring steel rolled springs provide reliable operation
- Frame Material: Made from 21-gauge galvanized steel
- Fire Rating: Ceiling radiation damper rated for 3 hours
- Insulation: Comes with fiberglass cover and ceramic fiber for thermal resistance
- Damper Adapter: Constructed from 25-gauge galvanized steel
- Spring Force: Each spring delivers no less than 4.496 lbf of force
- Frame Design: Features roll-framed galvanized steel frame for durability
| Material | Galvanized Steel Frame, Fabric |
| Galvanized Steel | 21 gauge for frame / 25 gauge for Damper Adapter |
| Fabric | 1/8" thick, 12.484 lbs/ft³ |
| Fusible Link | 165°F, 29/64" width |
| Springs | Spring steel rolled, 19/32" width |
| Force of 1 Spring | ≥4.496 lbf |
