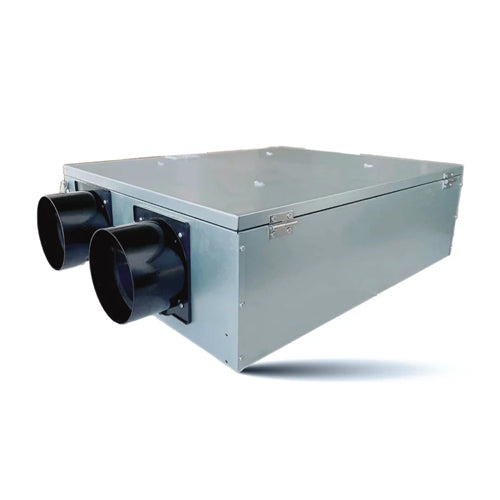

ORTECH ODD-ERV100EC, Cold Climate ECM Energry Recovery Ventilator 87% SRE, EC Fan Motor, 120V 1 Ph 60Hz, 61.8W, 0.52A, 6" Duct
Regular price
$1,120.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Energy Recovery Ventilator designed to enhance indoor comfort, reduce energy costs, and promote a healthier, more efficient living environment.
HIGHLIGHTS
- Enhanced Indoor Air Quality: This air exchange system improves indoor air quality by retaining existing heat and optimizing interior moisture levels.
- Mirrored: Mirrored unit available for identical but mirrored suites.
- Built-in Humidity Control: Includes a humidity sensor to automatically maintain optimal indoor moisture levels for comfort.
- Adjustable Airflow: Supply and exhaust airflow can be manually adjusted within a range of 40 to 100 CFM.
- Advanced Energy Recovery Core: Features a counterflow graphene core for superior energy transfer and thermal efficiency.
- Efficient EC Motors: Powered by two enclosed EC motors designed for quiet, continuous, and reliable operation.

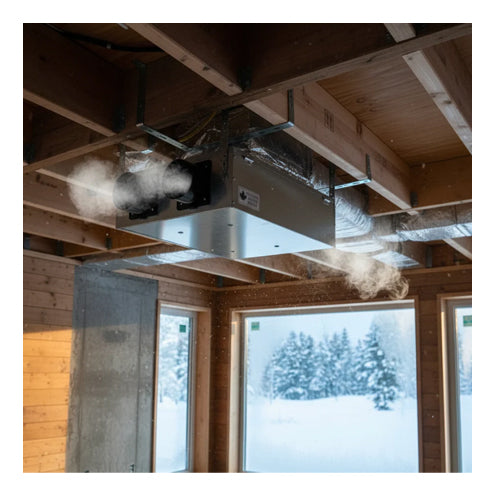

- Simplified Installation: Hard-wired option available. Mounting brackets included for easy setup for ceiling or wall mounting.
- Low-Temperature Protection: Designed to maintain performance and prevent freezing in extreme conditions.
- Filtration: Utilizes MERV4 washable and replaceable filters with 20 PPI for improved air purity. MERV 8 & 13 optional.
- Sound Level: 1.5 sones @ 100 CFM*
- Safety Feature: Equipped with a door switch that cuts power to the motors when the access door is opened.
- Customizable Run Time: Timer knob allows run time adjustments from 5 to 60 minutes per hour, providing flexibility to suit your needs.
- Airflow Testing: Features built-in test ports with plugs in each area for precise airflow and pressure measurement during startup and balancing.
- Certified Performance: Compliant with CSA Standard C439-18 for trusted energy recovery performance.
| Wattage | 61.8W |
| Voltage | 120V / 1 Ph / 60Hz |
| Amps | 0.52A |
| Motor | EC Fan Motor |
| Efficiency | 87% @ 48CFM |
| Duct Diameter | 6" |
| Fan Weight | 42lbs |
| Max. Airflow | 98.8CFM @ 0.2"wg |
| Certification | cETLus, cULus, HVI rated, Energy Star |
