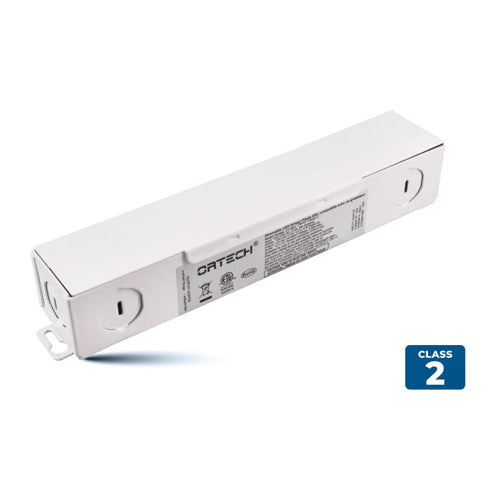

ORTECH OT-08D, 8watts max Dimmable LED Driver in Junction Box, Class 2, Input 100-130VAC, Output 12VDC, 0.65 Amps
Regular price
$16.67
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Maximum 8W Class 2 driver designed for LED lighting and moving sign applications, providing safe and efficient low-voltage power delivery with compliance to Class 2 standards for enhanced protection and reliability.
| Wattage | 8W |
| Input Voltage | 100-130V AC |
| Output Voltage | 12V DC |
| Power Factor | 0.6 (Full loading) |
| Dimmable | Yes |
| Grade of Protection | IP20 |
| Amps | 0.65A |
| Frequency Range | 47~63Hz |
| Short Circuit | Hiccup mode, recover automatically after fault condition is removed |
| Over Loading | ≤120% |
| Efficiency | 80% |
| Operating Temperature | -30°C to +45°C |
| Warranty | 5 Years |
| UL Listed | ETL |
| Case Quantities | 20 |
