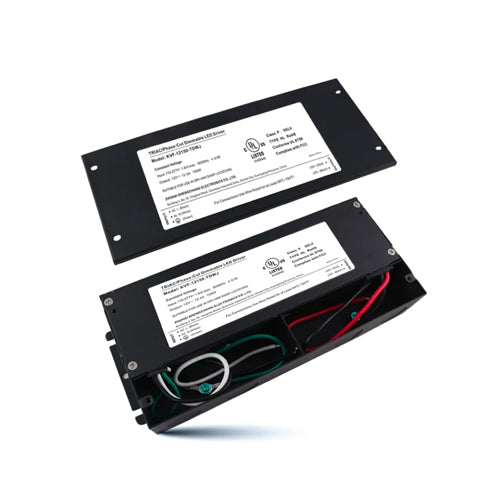

ORTECH OT-12200-TDWJ, 200W Dimmable Class 2 LED Driver, Input 110-277VAC, Output 12VDC, 16.66 Amps
Regular price
$113.63
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Maximum 200W Class 2 LED driver available with a 12V DC output, engineered to provide safe and efficient low-voltage power for LED lighting systems, while meeting Class 2 safety standards for enhanced reliability and protection in various applications.
| Wattage | 200W |
| Input Voltage | 110-277V AC |
| Output Voltage | 12V DC |
| Power Factor | 0.98 at 120V AC | 0.97 at 277V AC |
| Dimmable | Yes |
| Amps | 16.66A |
| Frequency Range | 47-63Hz |
| Short Circuit |
Shut down o/p voltage;
Repower on to recover after fault condition is removed
|
| Over Loading | 120% |
| Efficiency | 83% |
| Operating Temperature | -40ºC ~ +60ºC |
| Warranty | 5 Years |
| UL Listed | UL, FCC |
| Case Quantities | 10 |
