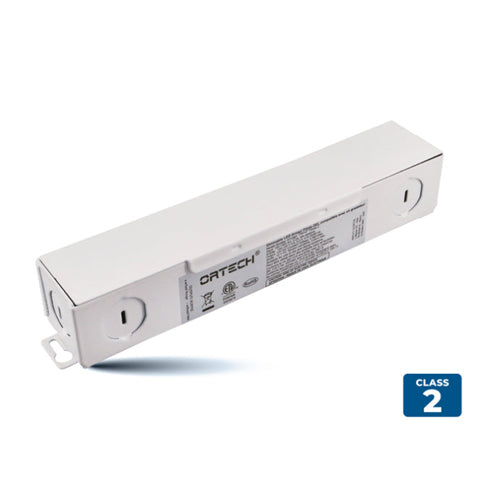

ORTECH OT-24D, 24watts max Dimmable LED Driver in Junction Box, Class 2, Input 100-130VAC, Output 12VDC, 2 Amps
Regular price
$27.27
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Dry Location Rated: Approved for use in indoor environments without moisture exposure.
- High Efficiency: Operates at up to 82% efficiency for energy-saving performance.
- Flicker-Free Dimming: Offers strong compatibility with dimmers for smooth, flicker-free lighting control.
- TRIAC Dimmable Driver: Provides constant voltage phase dimming using TRIAC technology for reliable output.
- Integrated Junction Box: Features a built-in junction box for secure and easy hardwire installation.
| Wattage | 24W |
| Input Voltage | 100-130V AC |
| Output Voltage | 12V DC |
| Power Factor | 0.6 (Full loading) |
| Dimmable | Yes |
| Grade of Protection | IP20 |
| Amps | 2A |
| Frequency Range | 47~63Hz |
| Short Circuit | Hiccup mode, recover automatically after fault condition is removed |
| Over Loading | ≤120% |
| Efficiency | 82% |
| Operating Temperature | -30°C to +45°C |
| Warranty | 5 Years |
| UL Listed | ETL |
| Case Quantities | 20 |
