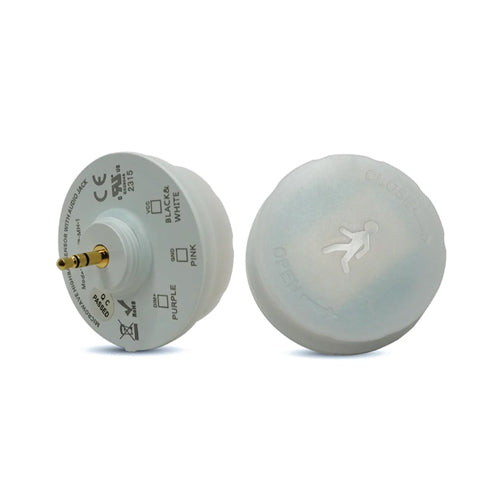

ORTECH PNP-SENSOR, Plug And Play Sensor Applicable For Ufo High Bays, Canopy, Linear Highbays, Shoe Boxes
Regular price
$17.81
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Microwave sensor head powered by 12V DC, featuring remote control operation.
HIGHLIGHTS
- Bi-level dimming with adjustable daylight threshold and dusk/dawn functions.
- Equipped with a 3.5mm jack, compatible with UFO high bays, linear high bays, canopies, and area light applications.
- Maximum mounting height of 12 meters.
- Distinguishes between artificial and natural light when installed inside the fixture, automatically turning off the light when ambient brightness exceeds the preset lux level.
- Designed for indoor use; motion signals from semi-outdoor or fully outdoor environments may trigger the sensor.
| Voltage | 10-15VDC |
| Connection | 12VDC input |
| Standby Dimming Level | 10%/20%/30%/50% (Preset setting: 10%) |
| Daylight Threshold | Disable/ 2lux/ 10lux/ 30lux/ 50lux/ 80lux/ 120lux (Preset setting: disable) |
| Installation Height | 12m/39ft Max. |
| Microwave Power | <0.3mW |
| Amps | ≥30mA |
| Frequency Range | 5.8GHz±75MHz |
| Warranty | 5 Years |
