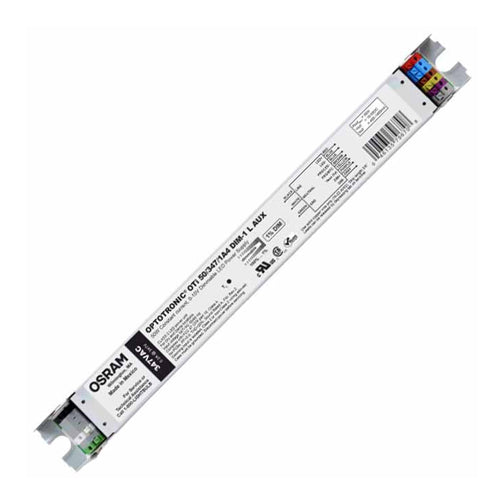

OSRAM 79678, OTi 50/347/1A4 DIM L, Output 50W 10-55VDC 400-1400mA Class 2 LED Driver with Tuning, 0-10V Dimming to 10%, Input 347VAC
Regular price
$77.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The OPTOTRONIC programmable dimmable family consists of highly efficient linear constant current LED power supplies. One click programming through the OPTOTRONIC programmer allows OEMs to configure the output current with 1mA resolution. Also fully customizable by customers are the end of life indicator, LED thermal protection and the constant lumen maintenance features. The OPTOTRONIC programmer does not require the power supply to be powered up or connected to AC line voltage while programming. The power supplies are available with built-in 0-10V dimming protocol with models available in 1% to 10%. The auxiliary output has the capability to power various sensors and is optimized for the OSRAM Connected Lighting Module (CLM).
| Stock Code | OTi 50/347/1A4 DIM L |
| Family | LED Driver - Constant Current Low Wattage |
| Part No | 79678 |
| Dimmable | Yes |
| Length | 11.02'' |
| Width | 1.18'' |
| Height | 0.99'' |
| Input Voltage | 347 Vac |
| Input Current | 0.20A/347V |
| Bulb Type | LED |
| Output Voltage | 10-55VDC |
| Output Current | 400-1400mA |
| Output Power | 50W |
| Power Factor | >0.95 |
| Start Temperature | ‐30°C~50°C |
| THD | <20% |
| Lead Lengths | Wire Trap / Plug‐in Connectors for 16-22 AWG Solid Wire |
| UL Listed | cCSAus, cULus Recognized |
| Warranty | 5 Years |
| Notes | Analog 0 to 10 vDC Voltage Control with Tuning Interface |
| Cross Refefence | Programming Tool 51645 & 51647/51648 |
