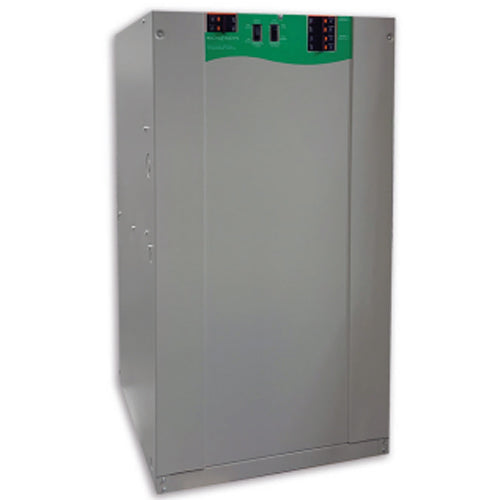

OUELLET 21ECM10-A, Energy Efficient Nortron Electric Furnace, 10KW 240V 1 Phase
Regular price
$2,060.29
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Nortron electric furnaces are manufactured to high quality standards and are renowned for their superior workmanship and reliability. Not only will you benefit from simple installation and trouble-free operation, but also from increased versatility and functionality. A proven solution!
- Variable-speed motor (ECM) for more energy savings;
- Element modulation via printed circuit boards;
- Fully insulated steel casing for reduced heat loss and noise.
| Product Family | Energy Efficient Nortron Electric Furnace |
| Phase | 1-phase |
| Voltage (V) | 240V |
| Wattage (KW) | 10KW |
| Color | Grey |
| Weight(Ib) | 108 |
| Construction | • Steel casing, all insulated for reduced heat loss and noise. • One panel on casing provides access to internal parts |
| Fan | High quality precision balanced blower for quiet operation and optimal performance |
| Motor | • Variable speed electronically commutated motor (ECM), permanently lubricated and rubber mounted for maximum vibration and noise reduction. • Relay and printed circuit board (PCB) control automatic operation of motor and allow for the addition of air conditioning or heat pump. |
| Heating element | • Heavy duty, reliable Helical coil nickel-chromium alloy wire provide superior heat transfer with unrestricted air flow. • Heating elements can be individually replaced. • High-limit temperature control with automatic reset. • Elements modulation is done by a low voltage printed circuit boards with rectifier/timers to prevent power surges |
| Control | • Heavy duty 24VAC transformer provides power to relays and controls. • Easy access built-in breakers with manual reset (except the 10kW models). • “Speed Selection” switch: “Low” or “High”. • “Heat Activation” switch: “Slow” or “Fast”. • Compatible with 1 or 2-stage thermostat with or without external unit |
| Installation | • Multi-position installation, sides, back, or bottom air returns. • Approved for zero clearance installation against combustible surfaces. |
| Warranty | 5-year warranty against defects. |
| Application | For cottages, homes or offices, also approved for mobile homes use. May be installed in a basement, closet, crawl space or any unused area or alcove. |
| UL Listed | cSAus |
