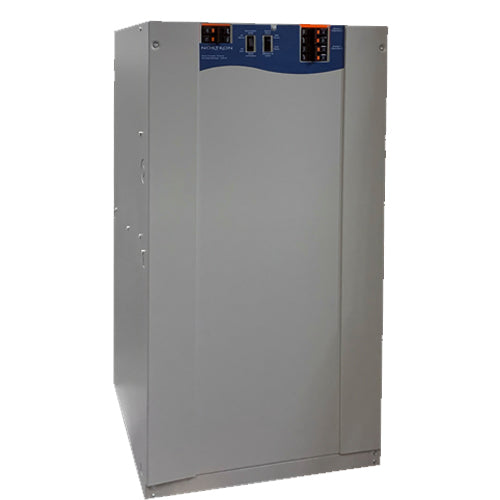

OUELLET 83B13-A, First Generation Nortron Electric Furnace, 13,5kW 208V 3 Phase
Regular price
$2,203.65
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Nortron electric furnaces are manufactured to high quality standards and are renowned for their superior workmanship and reliability. Not only will you benefit from simple installation and trouble-free operation, but also from increased versatility and functionality. A proven solution!
- Standard motor (PSC);
- Elements modulation via electro-mechanical sequencers.
| Product Family | First Generation Nortron Electric Furnace |
| Phase | 3-phase |
| Voltage (V) | 208V |
| Wattage (KW) | 13.5KW |
| Color | Grey |
| Weight(Ib) | 105 |
| Construction | One panel on casing provides access to internal parts |
| Fan | High quality precision balanced blower for quiet operation and optimal performance. |
| Motor | • Standard motor (PSC), permanently lubricated and rubber mounted for maximum vibration and noise reduction. • Furnace interlock kit designed to connect the furnace operation with a ventilation fan or a heat recovery ventilator unit (optional). |
| Heating element | • Heavy duty, reliable Helical coil nickel-chromium alloy wire provide superior heat transfer with unrestricted air flow. • Heating elements can be individually replaced. • High-limit temperature control with automatic reset. • Elements modulation is done by electro-mechanical sequencers. |
| Control | • Heavy duty 24VAC transformer provides power to relays and controls. • Easy access built-in breakers with manual reset. • “Season Selection” switch: “Mild” or “Cold”. • “Recirculation Mode” switch: “On” or “Off”. • Compatible with 1 or 2-stage thermostat with or without external unit. |
| Installation | • Multi-position installation, sides, back, or bottom air returns. • Approved for zero clearance installation against combustible surfaces. • Models with Standard Motor (PSC): Installation is forbidden outside Quebec |
| Warranty | 5-year warranty against defects. |
| Application | For cottages, homes or offices, also approved for mobile homes use. May be installed in a basement, closet, crawl space or any unused area or alcove. |
| UL Listed | cSAus |
