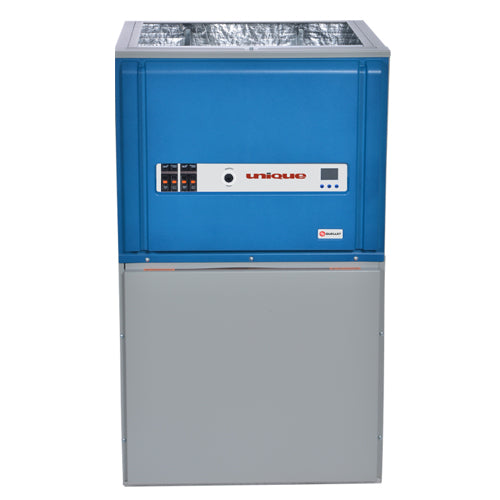

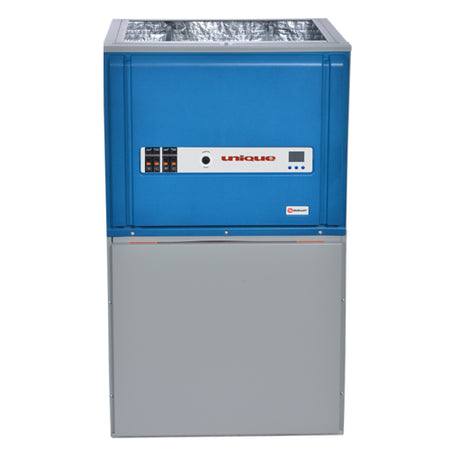

OUELLET OFEA10000, Advantage Electric Furnace, 10/7.5KW, 240/208V, 1 Phase, Grey with Standard Motor
Regular price
$1,462.27
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Product Family | Advantage Electric Furnace |
| Phase | 1-phase |
| Voltage (V) | 240/208V |
| Wattage (KW) | 10/7.5KW |
| Color | Grey |
| Weight(Ib) | 105 |
| Construction | • Steel casing, all insulated for reduced heat loss and noise. • Dual access panels on casing provide easy access to internal parts. |
| Fan | High quality precision balanced blower for quiet operation and optimal performance. |
| Motor | • Standard motor (PSC), permanently lubricated. • Variable speed electronically commutated motor (ECM), permanently lubricated. • Both motors are rubber mounted for maximum vibration and noise reduction. • Relay and printed circuit board (PCB) control automatic operation of motor and allow for the addition of air conditioning or heat pump |
| Heating element | • Heavy duty, reliable 4kW and 5kW helical coil nickel-chromium alloy wire provide superior heat transfer with unrestricted air flow. • Heating elements can be individually replaced. • High-limit temperature control with automatic reset. • Heating element sequence is done by a low voltage printed circuit boards with rectifier/timers to prevent power surges. |
| Control | • Heavy duty 24VAC transformer provides power to relays and controls. • Easy access built-in breakers with manual reset. • Thermostat "On" light indicates a call for heat by the thermostat. • “Speed Selector” switch: “Low” or “High”. • “Fan Selector” switch: “On” or “Off”. • Compatible with 1 or 2-stage thermostat with or without external unit. • A 120V terminal block also permits installation of accessories such as humidifier and electronic filter (maximum 2A). |
| Installation | • Multi-position installation, sides, back, or bottom air returns. • Approved for zero clearance installation against combustible surfaces. • Models with Standard Motor (PSC): Installation is forbidden outside Quebec. |
| Warranty | 5-year warranty against defects. |
| Application | • For cottages, homes or offices, also approved for mobile homes use. May be installed in a basement, closet, crawl space or any unused area or alcove. |
| UL Listed | cSAus |
