OUELLET ORP0250BL-2424, Architectural Radiant Pane, 250W 240V White, 24×24"
Regular price
$501.76
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Architectural Radiant Panel delivers clean, enveloping, energy-efficient warmth.

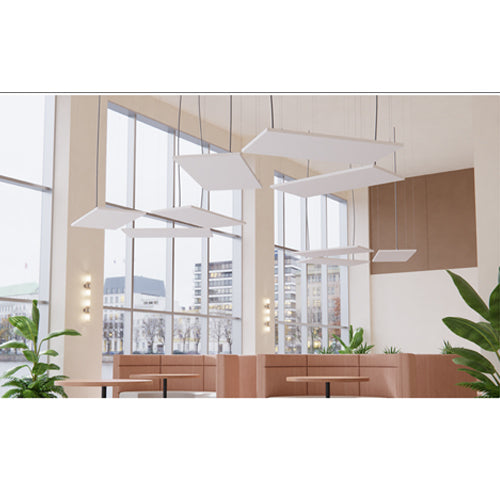

Designed for easy integration into a T-Bar suspended ceiling, it can also be surface-mounted or recessed using a range of optional accessories.
| Product Family | ORP Architectural Radiant Panel |
| Colors | Standard: white, black |
| Finish | High-temperature polyester powder coating |
| Voltage | 120V, 208V, 240V, 277V, 347V. |
| Construction | • Reflective foil bonded to the panel’s heating elements • High-temperature mineral wool insulation, density 2.5 PSF, 1 in (25.4 mm) thick • The front of the panel is made of 22-gauge painted steel. The panel cover is made of 22-gauge satin-finished steel • Suspension brackets at the four corners of the panel (suspension cable not included) |
| Element | Single-conductor heating wire with fluoropolymer insulation evenly distributed across the panel |
| Density | 62.5 to 93.75W/ft2 at rated voltage |
| Control | Line-voltage control circuit for thermostat, timer or switch (not included; must be compatible with the appliance’s voltage and power rating) Ouellet strongly recommends the use of a wall-mounted electronic thermostat for greater comfort. |
| Certification | CSA STD C22.2 No. 46 / UL 2021 |
| Installation |
• Suspended from the ceiling or fitted into a T-bar suspended ceiling • A variety of optional accessories is available for surface mounting using an SF frame on a drywall ceiling, or for recessed installation using an RF frame. An RB option is also available for recessed installation in a non-ventilated ceiling • Minimum clearance of 2 in (50.8 mm) above the panel • Minimum installation height of 7 ft (2.13 m) from the floor • Relocation possible |
| Warranty |
1 year on paintwork, 10 years on components
|
| Application |
Commercial and office buildings, hospitals, schools,
daycares, private residences |
