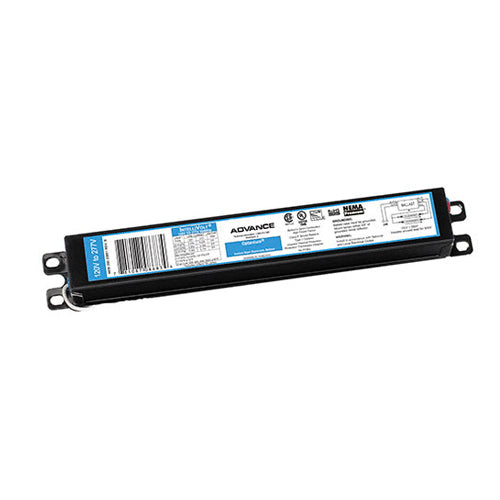

Philips Advance ICN2TTP40SC35M, Centium Electronic Instant Start 4-Pin CFL Ballasts, For (1/2) CFL 25W/40W, 120-277V
Regular price
$48.24
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Centium Electronic Instant Start 4-Pin CFL Ballasts . For (1/2) x FT40W/2G11, FT40W/2G11/ES(25W), FT40W/2G11/RS Lamps. 120-277V,50/60 HZ. Parallel Lamp Connection.
| Stock Code | ICN2TTP40SC35M |
| Family | CENTIUM |
| Part No | 196618 |
| Ballast Type | Electronic |
| Start Method | Instant Start |
| Ballast Factor | 0.88 |
| Length (in) | 9.5'' |
| Width (in) | 1.7'' |
| Height (in) | 1.18'' |
| Voltage (V) | 120-277V, 50/60 HZ |
| Input Current | MAX 0.57A |
| Wattage (w) | Max 68W |
| Bulb Type | Compact Fluorescent Lamp |
| How Many Lamps | 1 - 2 Lamps |
| Operates | Biax/PL-L 40W, PLL40W, PL-L 40W, 36W |
| Power Factor | 0.98 |
| Start Temp. (Min) | 0°F/-18°C |
| THD | 10% |
| UL Listed | UL,CSA |
| Cross Refefence | Replace Universal Lighting - Triad C240SI120RH - For (2/1) CFL FT40W/2G11 Lamps - 120V Replace Ultrasave Ballast UT240120M Replace Ultrasave Ballast UT240120MB-P |
