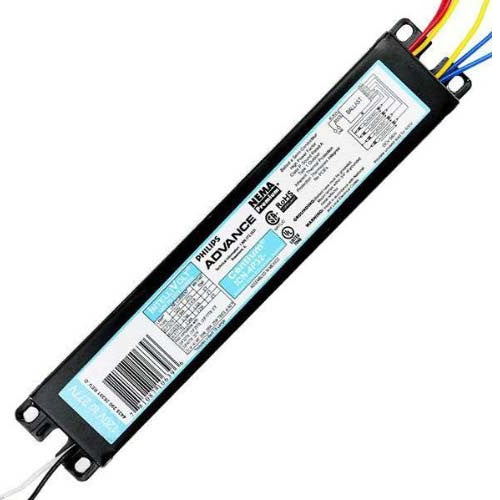

Philips Advance ICN4P32N35M, Centium Electronic T8 Fluorescent Ballasts, Instant Start, For (3/4) T8 Lamp, 120-277 Volt
Regular price
$29.36
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

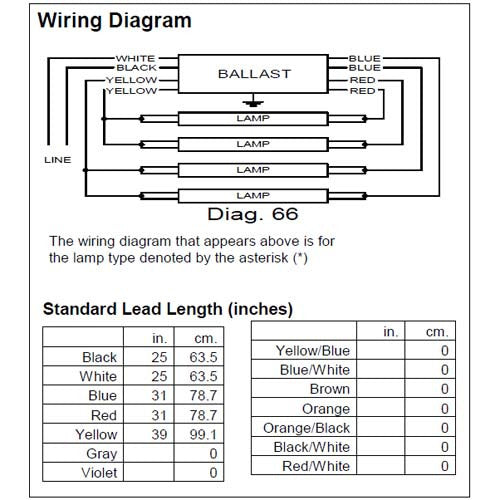

For (3) or (4) x F17T8, F25T8, F32T8, F32T8/ES (25W, 28W, 30W), (3) x F40T8 Fluorescent Lamps. Electronic Instant Start Ballast, Parallel Lamp Connection, High Efficiency Normal Ballast Factor (NBF), 120-277VAC, 50/60Hz.
| Stock Code | ICN4P32N35M |
| Family | Centium Electronic T8 Fluorescent Ballasts |
| Part No | 109140 |
| Ballast Type | Electronic |
| Start Method | Instant Start |
| Ballast Factor | 1.04 |

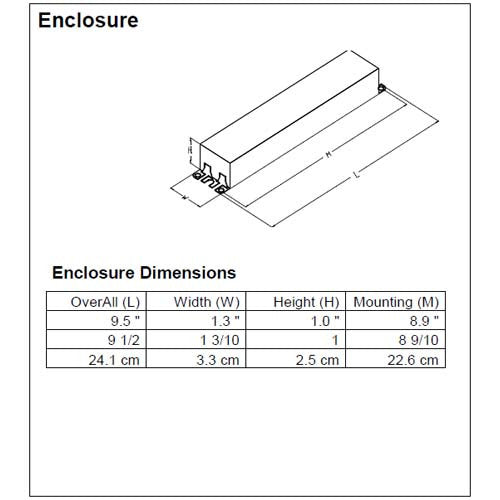

| Length (in) | 9.50" |
| Width (in) | 1.3" |
| Height (in) | 1.00" |
| Voltage (V) | 120-277V, 50/60Hz (120 Through 277VAC) |
| Wattage (w) | Max. 112 Watt |
| Bulb Type | Fluorescent Lamps |
| How Many Lamps | 3 - 4 Lamps |
| Power Factor | 0.99 |
| Start Temp. (Min) | -18°C (0°F) |
| THD | 15% Max. |
| UL Listed | UL,CSA |
| Cross Refefence | Advance ICN-4P32-N (109140) Advance ICN4P32N |
