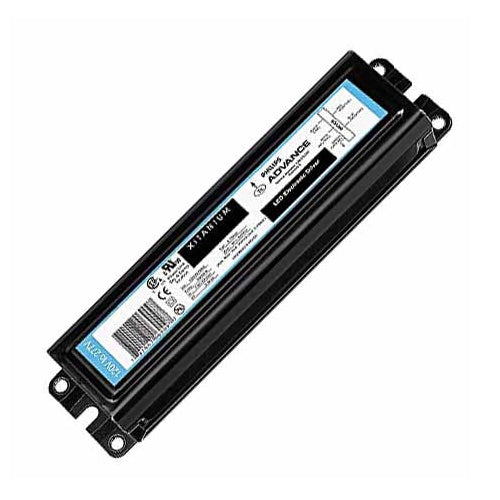

Philips LEDINTA0530C280DO, Advance LED Driver, 150W 530mA, Output Voltage 120-280V, 0‐10VDC Isolated Dimming, 120-277VAC Input
Regular price
$74.99
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Stock Code | LEDINTA0530C280DO |
| Family | Philips Advance Xitanium |
| Part No | 109082 / LEDINTA0530C280DOM |
| Dimmable | Yes |
| Length | 8.38 in (211.1 mm) |
| Width | 2.35 in (59.1 mm) |
| Height | 1.47 in (37.1 mm) |
| Input Voltage | 120-277VAC |
| Input Current | 1.4A@120VAC, 0.6A@277VAC |
| Output |
Voltage: 120V-280V
Current: 530mA
Power: 150W
|
| Bulb Type | LED |
| IP Rating | IP66 |
| Power Factor | >0.90 |
| Start Temperature | ‐40°C (-40°F)~80°C (176°F) |
| THD | <20% |
| Mounting Length | 9.0 in (226.2 mm) |
| UL Listed | cSAus, RoHS |
| Lead Lengths | 10 in. |
| Warranty | 5 Years |
| Cross Refefence | Universal D530C150UVT‐F |
| Weight | 2.6 lb. |
