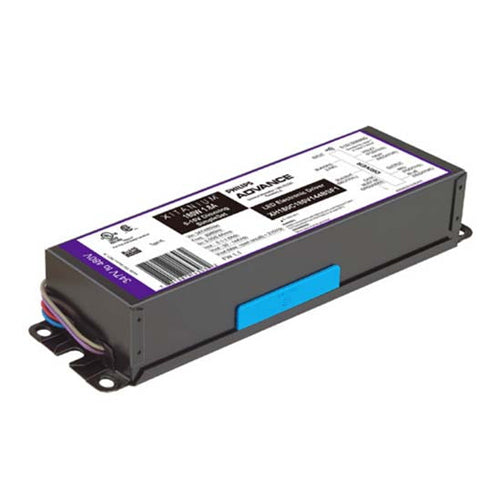

Philips XH100C150V091BSY1, Advance Xitanium LED Driver, 100W 0.1-1.5A 30-91VDC Output, 0-10V Dimming with SimpleSet, 347-480VAC Input
Regular price
$89.99
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Stock Code | XH100C150V091BSY1 |
| Family | Advance Xitanium LED Driver with SimpleSet |
| Part No | XH100C150V091BSY1M |
| Dimmable | Yes |
| Length | 6.59 in / 167.5 mm |
| Width | 2.32 inch / 58.8 mm |
| Height | 1.48 inch / 37.6 mm |
| Input Voltage | 347 - 480 Vac |
| Output |
Voltage: 30-91VDC
Current: 0.1 - 1.5A
Power: 100W
|
| Bulb Type | LED |
| Power Factor | >0.9 |
| Start Temperature | ‐40°C~55°C |
| UL Listed | cULus, For Dry and Damp Location |
| Weight | 1.44 Lbs / 0.65 kgs |
| Notes | We provide free programming services for all programmable LED Drivers we sold as per your requested output Current and Voltage. Please leave a detailing memo if you need this service when you check out. |
