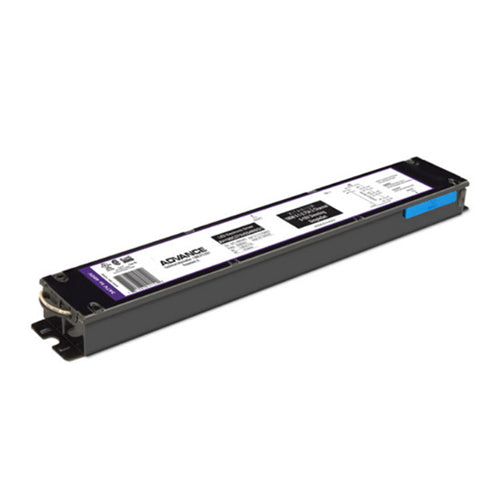

Philips XH190C275V054BSG1, Advance Xitanium Maximum 190W 0.1-2.75A 27-54VDC Output, 0-10V Dimming , SimpleSet Programming, 347-480VAC Input
Regular price
$138.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Advance Xitanium LED drivers with SimpleSet technology are designed to give OEMs ultimate flexibility with one driver to serve a complete portfolio. The operating window optimizes coverage for Class 2 in terms of power, output voltage and current. With two independent channels this driver allows the user to get much more than 100W in a compact form factor, while still complying with Class 2 limits. High driver efficiency enables very high system efficacies.
| Stock Code | XH190C275V054BSG1 |
| Family | Advance Xitanium LED Driver with SimpleSet |
| Part No | XH190C275V054BSG1M |
| Dimmable | Yes |
| Length | 15.75 inch / 400 mm |
| Width | 1.8 inch / 45.6 mm |
| Height | 1.22 inch / 31 mm |
| Input Voltage | 347 - 480 Vac |
| Output |
Voltage: 27-54VDC
Current: 0.1A-2.75A via SimpleSet (Factory Default at 2.3A)
Power: 190W
|
| Bulb Type | LED |
| Power Factor | >0.9 |
| Start Temperature | ‐40°C~55°C |
| UL Listed | CSA, cULus, For Dry and Damp Location |
| Weight | 2.18 Lbs / 0.991 kgs |
