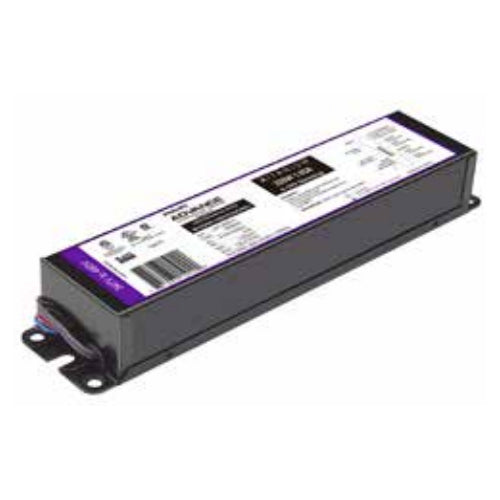

Philips XH220C105V210CNA1, Advance Xitanium LED Driver, 220W 1.05A 105-210VDC 0-10V Dimming, 347-480VAC Input
Regular price
$119.99
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Long-lasting and low-maintenance, LED-based light sources are an excellent solution for all outdoor lighting applications. For optimal performance, these solutions require reliable drivers matching the long lifetime of the LEDs. The Advance Xitanium LED outdoor driver portfolio offers a range of products specially designed to operate LED solutions in outdoor applications. These drivers are designed for hard-wired integration into outdoor luminaires for the most rugged applications. They operate to specification under wide temperature and electrical ranges to help ensure reliability.
| Stock Code | XH220C105V210CNA1 |
| Family | Advance Xitanium LED Outdoor Driver |
| Part No | XH220C105V210CNA1M |
| Dimmable | Yes |
| Length | 9.31 inch / 236.4 mm |
| Width | 2.33 inch / 59.1 mm |
| Height | 1.49 inch / 37.9 mm |
| Input Voltage | 347 - 480 Vac |
| Output |
Voltage: 105-210VDC
Current: 1.05A
Power: 220W
|
| Bulb Type | LED |
| Power Factor | >0.95 |
| Start Temperature | ‐40°C~55°C |
| UL Listed | UL 8750, CSA 250.13, UL Listed, ETL Class P, For Dry and Damp Location |
| Weight | 2.5 Lbs / 1.12 kgs |
