Philips XI013C036V054DNM1, Xitanium LED Driver, 13W 0.1-0.36A, 27-54Vdc Output, 0-10V Dimming with SimpleSet Programming, 120-277Vac Input, Bottom Entry
Regular price
$56.95
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Stock Code | XI013C036V054DNM1 |
| Family | Advance Xitanium Range of Downlight LED Drivers | SimpleSet |
| Part No | XI013C036V054DNM1M |
| Dimmable | Yes |

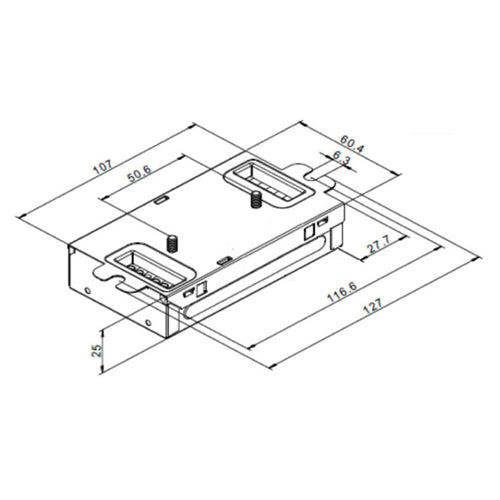

| Length | 4.21'' / 107mm |
| Width | 2.38'' / 60.4mm |
| Height | 0.98'' / 25mm |
| Input Voltage | 120-277Vac |
| Bulb Type | LED |
| Output Voltage | 27-54Vdc |
| Output Current | 0.1 - 0.36A |
| Output Power | 13W |
| Power Factor | >0.95 |
| Weight | 0.44 Lbs / 0.2 kgs |
| UL Listed | UL8750, UL991, cUL, Class P (UL, cUL) |
| Notes | AOC (Adjustable Output Current): 0.1A-0.36A via External Resistor (default set to 0.36A, refer to graph) |
