Home » Philips XI020C070V030RNP2, Advance LED Driver, 20W, Output Voltage 15-30Vdc, Output Current 0.4-0.7A, Input Voltage 120-277Vac, Dimmable
Philips

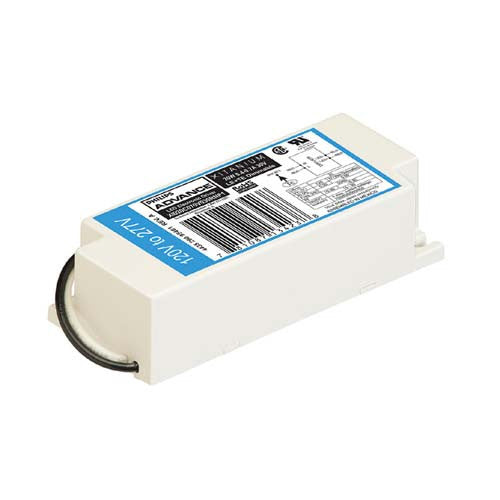

Philips XI020C070V030RNP2, Advance LED Driver, 20W, Output Voltage 15-30Vdc, Output Current 0.4-0.7A, Input Voltage 120-277Vac, Dimmable

In stock
SKU: XI020C070V030RNP2
$34.99
Rated voltage
Power

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Stock Code XI020C070V030RNP2
Part No Xitanium 20W 0.4-0.7A 30V LE+TE INT
Dimmable Yes
Length 3.74''
Width 1.57''
Height 0.98''
Input Voltage 120-277Vac
Bulb Type LED
Output Voltage 15-30Vdc
Output Current 400/500/600/700mA
Output Power 20W
Start Temp. -20°C~50°C

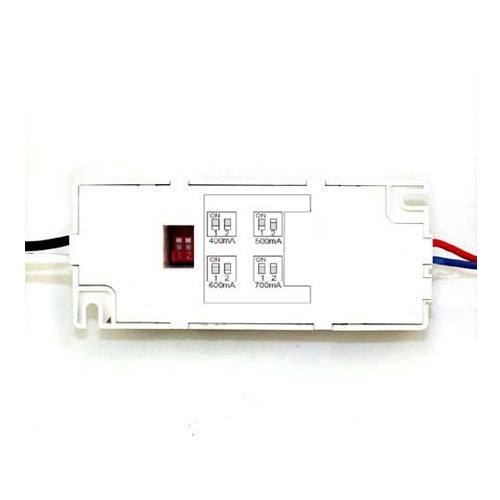

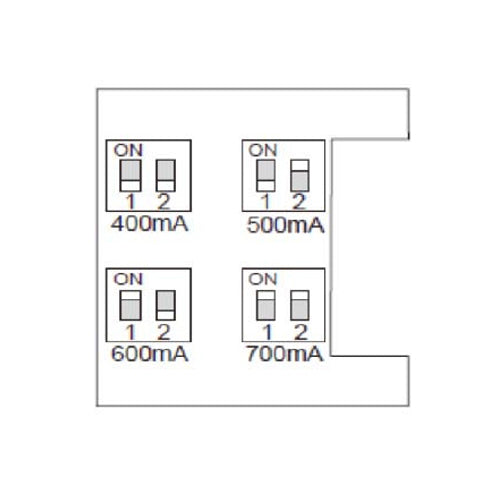

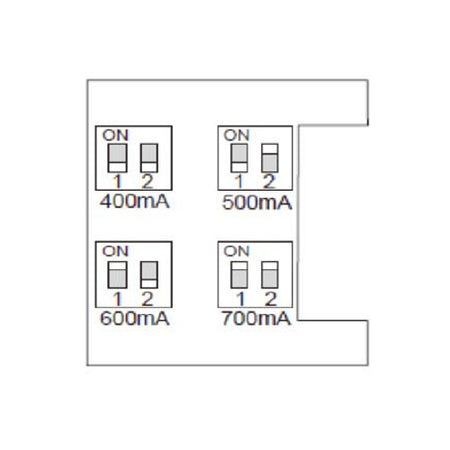

Operates 400mA to 700mA via DIP switches (refer to figure & notes in the Electrical Specification section)
UL Listed UL8750, UL991, CSA250.13-14, C22.2 No. 0.8-12 , Class P (UL, CSA, ETL)
