Home » Philips XI025C100V054BSD2, Xitanium LED Driver, 25W 0.1-1.0A 10-54VDC Output, 0‐10Vdc Analog Dimming, Bottom and Side Entry, Class 2, 120-277VAC Input
Philips

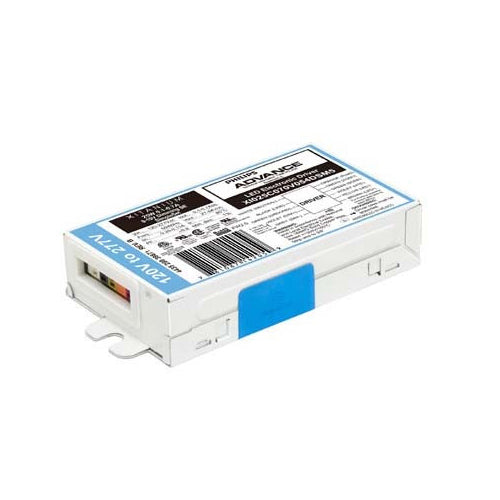

Philips XI025C100V054BSD2, Xitanium LED Driver, 25W 0.1-1.0A 10-54VDC Output, 0‐10Vdc Analog Dimming, Bottom and Side Entry, Class 2, 120-277VAC Input

In stock
SKU: XI025C100V054BSD2
$47.99
Rated voltage
Power

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Stock Code XI025C100V054BSD2
Family Xitanium LED Electronic Driver
Dimmable Yes
Length 4.98 in / 126.6 mm
Width 2.36 in / 59.9 mm
Height 0.98'' / 25mm
Input Voltage 120-277Vac
Mounting 4.59 in (116.60 mm)
Bulb Type LED
Output Voltage 10-54VDC
Output Current 0.1 - 1.0A
Output Power 25W
Weight  0.44 Lbs / 0.2 kgs
UL Listed cULus
Operates AOC (Adjustable Output Current): 0.1A-1.0A via SimpleSet programming (refer to graph and notes below)
Cross Refefence Advance Xitanium XI025C100V036DSM1, XI025C100V036DSM1M
Advance Xitanium XI025C100V036DSM5, XI025C100V036DSM5M
Advacne Xitanium XI025C100V054BSM2 (bottom entry)
