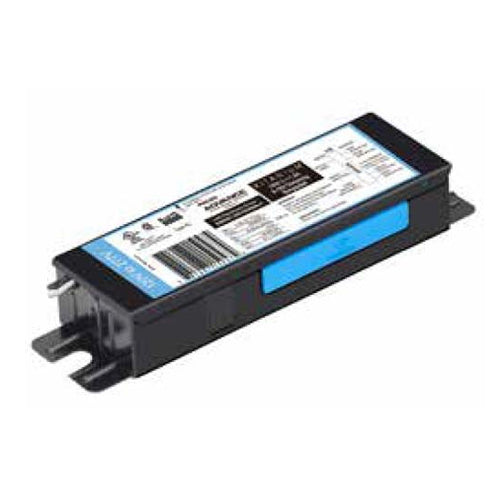

Philips XI030C080V054BSJ1, Advance LED Driver, 30W 0.1-0.8A 20-54VDC Output, 0‐10Vdc Dimming Class 2 Output, SimpleSet Programming, 120-277VAC Input
Regular price
$52.99
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Stock Code | XI030C080V054BSJ1 |
| Part No | XI030C080V054BSJ1M |
| Dimmable | Yes |
| Length | 6.61 in / 168 mm |
| Width | 1.79 in / 45.5 mm |
| Height | 1.12 in / 28.5 mm |
| Input Voltage | 120-277Vac |
| Mounting | 5.98 in (152 mm) |
| Bulb Type | LED |
| Output Voltage | 20-54VDC |
| Output Current | 0.1 - 0.8A |
| Output Power | 30W |
| Start Temp. | -40°C~50°C |
| Weight | 0.795 Lbs / 0.361 Kgs |
| Operates | AOC (Adjustable Output Current) 0.1A - 0.8A via SimpleSet (Factory Default at 0.7A) |
| UL Listed | cULus, CSA, cETLus, For Dry and Damp Location |
