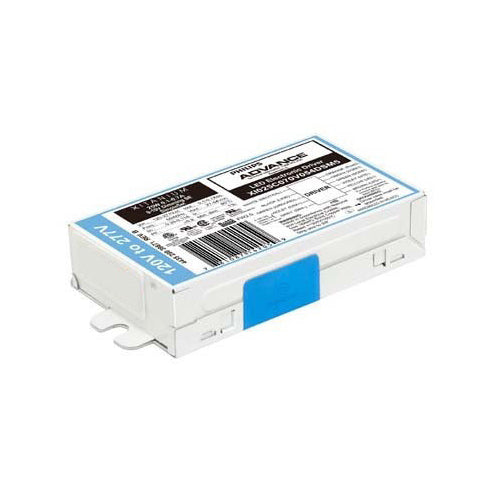

Philips XI036C100V054DSM1, Advance Xitanium LED Driver, 36W 0.1-1.0A 27-54Vdc Output, 0-10V Dimming with SimpleSet, 120-277Vac Input, Bottom Entry Wiring
Regular price
$69.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Stock Code | XI036C100V054DSM1 |
| Family | Xitanium Constant Current AC/DC Driver |
| Part No | XI036C100V054DSM1M |
| Dimmable | Yes |
| Length | 4.98 in / 126.6 mm |
| Width | 2.36 in / 59.9 mm |
| Height | 0.98 in / 24.9 mm |
| Input Voltage | 120-277Vac |
| Bulb Type | LED |
| Mounting | Panel Mount with Bottom Entry Wiring |
| Operates | Factory default output current is 1.0A |
| Output Voltage | 27-54Vdc |
| Output Current | 0.1-1.0A |
| Output Power | 36W |
| Power Factor | >0.9 |
| Start Temp. | -40°C~50°C |
| Weight | 0.44 Lbs / 0.2 kgs |
| UL Listed | cULus, For Dry and Damp Location |
| Notes | AOC (Adjustable Output Current) 0.1A-1.0A via SimpleSet programming (refer to graph and notes in above PDF file) |
| Cross Refefence | Advance Xitanium XI036C100V054DSM5 [side entry] |
