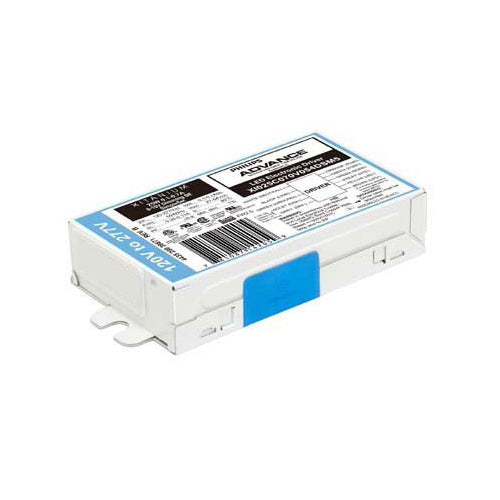

Philips XI036C140V054BSM2, Advance Xitanium LED Driver, 36W 0.1-1.4A 10-54Vdc Class 2 Output, 0-10V Dimming with SimpleSet, 120-277Vac Input, Bottom Entry Leads
Regular price
$49.99
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Stock Code | XI036C140V054BSM2 |
| Family | Xitanium Constant Current AC/DC Driver |
| Part No | XI036C140V054BSM2M |
| Dimmable | Yes |
| Length | 4.98 in / 126.6 mm |
| Width | 2.36 in / 59.9 mm |
| Height | 0.98 in / 24.9 mm |
| Input Voltage | 120-277Vac |
| Bulb Type | LED |
| Mounting | Panel Mount with Bottom Entry Leads |
| Operates | Factory default output current is 1.4A, AOC (Adjustable Output Current) 0.1A-1.4A via SimpleSet programming (refer to graph and notes in above PDF file) |
| Output Voltage | 10-54Vdc |
| Output Current | 0.1-1.4A |
| Output Power | 36W |
| Power Factor | >0.9 |
| Start Temp. | -40°C~50°C |
| Weight | 0.44 Lbs / 0.2 kgs |
| UL Listed | cULus, For Dry and Damp Location |
