Philips XI055C130V042RNP1, Xitanium Led Driver, 55W 1-1.3A 20-42V Output, LE+TE Dimmable, Class 2, 100-277VAC Input
Regular price
$47.25
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Advance Xitanium range of phase-cut dimming LED drivers is perfectly suited for commercial fittings in downlight and track lighting applications. These models offer the flexibility of precise output of drive currents from selectable settings and are compatible with a variety of electronic low voltage dimmers to deliver reliably smooth dimming performance. The drivers are offered in a compact form factor suitable for use in elegantly unobtrusive fixture designs. Rated for long life with efficient performance, these drivers are excellent design choices for LED downlight fixtures and offer the benefits of longlasting energy savings with low maintenance costs.
| Stock Code | XI055C130V042RNP1 |
| Family | Xitanium LED Driver, Leading Edge, Trailing Edge, Triac Dimmable |
| Part No | XI055C130V042RNP1M |
| Dimmable | Yes |

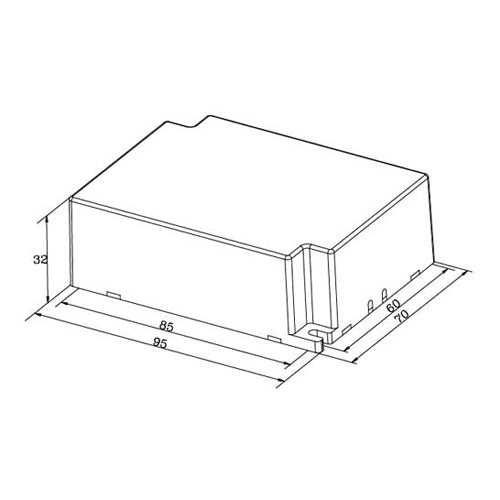

| Length | 3.74 in (95 mm) |
| Width | 2.75 in (70 mm) |
| Height | 1.26 in (32 mm) |
| Input Voltage | 120-277VAC |
| Bulb Type | LED |
| IP Rating | IP54 |
| Output Voltage | 20-42V |
| Output Current | 1 - 1.3A |
| Output Power | 55W |
| Power Factor | >0.95 |
| Start Temp. | ‐20°C~50°C |
| THD | <20% |
| Weight | 0.758 lb |
| UL Listed | UL8750, UL991, CSA250.13-14, C22.2 No. 0.8-12 , Class P (UL, CSA, ETL) |
| Warranty | 5 Years |

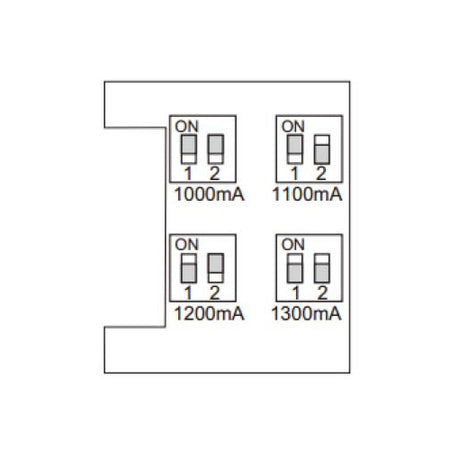

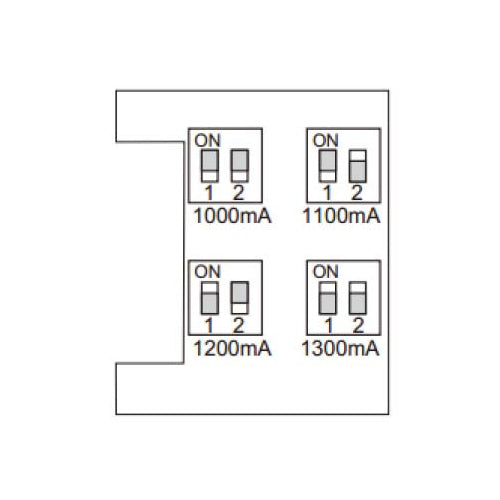

| Notes | 1000mA to 1300mA via DIP switches (refer to figure & notes in the Electrical Specification section) |
